Ichthyosaur
2008/9 Schools Wikipedia Selection. Related subjects: Dinosaurs
| Ichthyosauria Fossil range: Middle Triassic - Late Cretaceous |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ichthyosauria, Holzmaden, Museum Wiesbaden
|
||||||||||||
| Scientific classification | ||||||||||||
|
||||||||||||
| Families | ||||||||||||
|
Ichthyosauridae |
Ichthyosaurs (Greek for 'fish lizard' - ιχθυς meaning 'fish' and σαυρος meaning 'lizard') were giant marine reptiles that resembled fish and dolphins. Ichthyosaurs thrived during much of the Mesozoic era; based on fossil evidence, they first appeared approximately 230 million years ago ( Mya) and disappeared about 90 million years ago, about 25 million years before the dinosaurs became extinct. During the middle Triassic Period, ichthyosaurs evolved from as-yet unidentified land reptiles that moved back into the water, in a development parallel to that of modern-day dolphins and whales. They were particularly abundant in the Jurassic Period, until they were replaced as the top aquatic predators by plesiosaurs in the Cretaceous Period. They belong to the order known as Ichthyosauria or Ichthyopterygia ('fish flippers' - a designation introduced by Sir Richard Owen in 1840, although the term is now used more for the parent clade of the Ichthyosauria).
Description
Ichthyosaurs averaged 2 to 4 meters in length (although a few were smaller, and some species grew much larger), with a porpoise-like head and a long, toothed snout. Built for speed, like modern tuna, some ichthyosaurs appear also to have been deep divers, like some modern whales (Motani, 2000). It has been estimated that ichthyosaurs could swim at speeds up to 40 km/h (25 mph). Similar to modern cetaceans such as whales and dolphins, they were air-breathing and also were viviparous (some adult fossils have even been found containing fetuses). Although they were reptiles and descended from egg-laying ancestors, viviparity is not as unexpected as it first appears. All air-breathing marine creatures must either come ashore to lay eggs, like turtles and some sea snakes, or else give birth to live young in surface waters, like whales and dolphins. Given their streamlined bodies, heavily adapted for fast swimming, it would have been difficult for ichthyosaurs to scramble successfully onto land to lay eggs.
According to weight estimates by Ryosuke Motani a 2.4 meter (8 ft) Stenopterygius weighed around 163 to 168 kg (360 to 370 lb), whilst a 4.0 meter (13 ft) Ophthalmosaurus icenicus weighed 930 to 950 kg (about a ton).
Although ichthyosaurs looked like fish, they were not. Biologist Stephen Jay Gould said the ichthyosaur was his favorite example of convergent evolution, where similarities of structure are analogous not homologous, for this group:
converged so strongly on fishes that it actually evolved a dorsal fin and tail in just the right place and with just the right hydrological design. These structures are all the more remarkable because they evolved from nothing — the ancestral terrestrial reptile had no hump on its back or blade on its tail to serve as a precursor.
In fact the earliest reconstructions of ichthyosaurs omitted the dorsal fin, which had no hard skeletal structure, until finely-preserved specimens recovered in the 1890s from the Holzmaden lagerstätten in Germany revealed traces of the fin. Unique conditions permitted the preservation of soft tissue impressions.

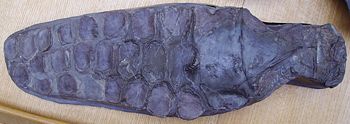

Ichthyosaurs had fin-like limbs, which were possibly used for stabilisation and directional control, rather than propulsion, which would have come from the large shark-like tail. The tail was bi-lobed, with the lower lobe being supported by the caudal vertebral column, which was "kinked" ventrally to follow the contours of the ventral lobe.
Apart from the obvious similarities to fish, the ichthyosaurs also shared parallel developmental features with dolphins. This gave them a broadly similar appearance, possibly implied similar activity and presumably placed them broadly in a similar ecological niche.
For their food, many of the fish-shaped ichthyosaurs relied heavily on ancient cephalopod kin of squids called belemnites. Some early ichthyosaurs had teeth adapted for crushing shellfish. They also most likely fed on fish, and a few of the larger species had heavy jaws and teeth that indicated they fed on smaller reptiles. Ichthyosaurs ranged so widely in size, and survived for so long, that they are likely to have had a wide range of prey. Typical ichthyosaurs have very large eyes, protected within a bony ring, suggesting that they may have hunted at night.
History of discoveries
The genus had first been described in 1699 from fossil fragments discovered in Wales.
The first fossil vertebrae were published twice in 1708 as tangible mementos of the Universal Deluge. The first complete ichthyosaur fossil was found in 1811 by Mary Anning in Lyme Regis, along what is now called the Jurassic Coast. She subsequently discovered three separate species.
In 1905, the Saurian Expedition led by John C. Merriam of the University of California and financed by Annie Alexander, found 25 specimens in central Nevada, which during the Triassic was under a shallow ocean. Several of the specimens are now in the collection of the University of California Museum of Paleontology. Other specimens are embedded in the rock and visible at Berlin-Ichthyosaur State Park in Nye County. In 1977 the Triassic ichthyosaur Shonisaurus became the State Fossil of Nevada. Nevada is the only state to possess a complete skeleton, 55 ft (17 m) of this extinct marine reptile. In 1992, Canadian ichthyologist Dr. Elizabeth Nicholls (Curator of Marine Reptiles at the Royal Tyrrell {"tur ell"} Museum) uncovered the largest fossil specimen ever, a 23m (75')-long example.
Evolutionary history
The earliest ichthyosaurs, looking more like finned lizards than the familiar fish or dolphin forms, are known from the Early and Early-Middle ( Olenekian and Anisian) Triassic strata of Canada, China, Japan, and Spitsbergen in Norway. These primitive forms included the genera Chaohusaurus, Grippia, and Utatsusaurus.
These very early proto-ichthyosaurs, which are now classified as Ichthyopterygia rather than as ichthyosaurs proper (Motani 1997, Motani et al. 1998), quickly gave rise to true ichthyosaurs sometime in the latest Early Triassic or earliest Middle Triassic. These later diversified into a variety of forms, including the sea-serpent like Cymbospondylus, which reached 10 meters, and smaller more typical forms like Mixosaurus. By the Late Triassic, ichthyosaurs consisted of both classic Shastasauria and more advanced, "dolphin"-like Euichthyosauria ( Californosaurus, Toretocnemus) and Parvipelvia ( Hudsonelpidia, Macgowania). Experts disagree over whether these represent an evolutionary continum, with the less specialised shastosaurs a paraphyletic grade that was evolving into the more advanced forms (Maisch and Matzke 2000), or whether the two were separate clades that evolved from a common ancestor earlier on (Nicholls and Manabe 2001).
During the Carnian and Norian, shastosaurs reached huge sizes. Shonisaurus popularis, known from a number of specimens from the Carnian of Nevada, was 15 meters long. Norian shonisaurs are known from both sides of the Pacific. Himalayasaurus tibetensis and Tibetosaurus (probably a synonym) have been found in Tibet. These large (10 to 15 meters long) ichthyosaurs probably belong to the same genus as Shonisaurus (Motani et al, 1999; Lucas, 2001, pp.117-119). While the gigantic Shonisaurus sikanniensis, whose remains were found in the Pardonet formation of British Columbia by Elizabeth Nicholls, reached as much as 21 meters in length - the largest marine reptile known to date.
These giants (along with their smaller cousins) seemed to have disappeared at the end of the Norian. Rhaetian (latest Triassic) ichthyosaurs are known from England, and these are very similar to those of the Early Jurassic. Like the dinosaurs, the ichthyosaurs and their contemporaries the plesiosaurs survived the end-Triassic extinction event, and immediately diversified to fill the vacant ecological niches of the earliest Jurassic.
The Early Jurassic, like the Late Triassic, was the heyday of the ichthyosaurs, which are represented by four families and a variety of species, ranging from one to ten meters in length. Genera include Eurhinosaurus, Ichthyosaurus, Leptonectes, Stenopterygius, and the large predator Temnodontosaurus, along with the persistently primitive Suevoleviathan, which was little changed from its Norian ancestors. All these animals were streamlined, dolphin-like forms, although the more primitive animals were perhaps more elongated than the advanced and compact Stenopterygius and Ichthyosaurus.
Ichthyosaurs were still common in the Middle Jurassic, but had now decreased in diversity. All belonged to the single clade Ophthalmosauria. Represented by the 4 meter long Ophthalmosaurus and related genera, they were very similar to Ichthyosaurus, and had attained a perfect "tear-drop" streamlined form. The eyes of Ophthalmosaurus were huge, and it is likely that these animals hunted in dim and deep water (Motani 2000).
Ichthyosaurs seemed to decrease in diversity even further with the Cretaceous. Only a single genus is known, Platypterygius, and although it had a worldwide distribution, there was little diversity species-wise. This last ichthyosaur genus became extinct during the Cenomanian-Turonian extinction event early in the Late Cretaceous (as did the pliosaurs). Interestingly, less hydrodynamically efficient animals like mosasaurs and long-necked plesiosaurs flourished. It could be that the ichthyosaurian over-specialisation was a contributing factor to their extinction, possibly being unable to 'keep up' with the fast swimming and highly evasive new teleost fishes, which had become dominant at this time, against which the sit-and-wait ambush strategies of the mosasaurs proved superior (Lingham-Soliar 1999).
Taxonomy of species
- Order ICHTHYOSAURIA
- Family Mixosauridae
- Suborder Merriamosauriformes
- Guanlingsaurus
- (unranked) Merriamosauria
- Family Shastasauridae
- Cymbospondylus
- Infraorder Euichthyosauria ("true ichthyosaurs")
- Family Teretocnemidae
- (Unranked) Parvipelvia ("small pelves")
- Macgovania
- Hudsonelpidia
- Suevoleviathan
- Temnodontosaurus
- Family Leptonectidae
- Infraorder Thunnosauria ("tuna lizards")
- Family Stenopterygiidae
- Family Ichthyosauridae
- Family Ophthalmosauridae
In popular culture
- Ichthyosaurus is one of the prehistoric creatures mentioned in Jules Verne's book Journey to the Centre of the Earth, in which it fights with a Plesiosaurus. However, in the book it is described as being much, much larger than it was in reality. Ironically, in the book the Ichthyosaurus wins the fight against the Plesiosaurus when the Plesiosaurus replaced the Ichthyosaurs as top marine predators in the Cretaceous period.
- The large aquatic monster from the video game Half-Life is named Ichthyosaur.
