Roche limit

2008/9 Schools Wikipedia Selection. Related subjects: Space (Astronomy)

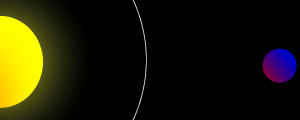

Consider an orbiting mass of fluid held together by gravity, here viewed from above the orbital plane. Far from the Roche limit the mass is practically spherical.

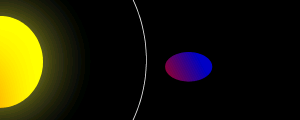

Closer to the Roche limit the body is deformed by tidal forces.

Within the Roche limit the mass's own gravity can no longer withstand the tidal forces, and the body disintegrates.

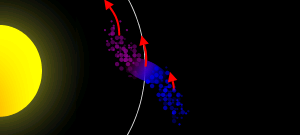

Particles closer to the primary move more quickly than particles farther away, as represented by the red arrows.

The varying orbital speed of the material eventually causes it to form a ring.

The Roche limit (pronounced /ˈroʊʃ/), sometimes referred to as the Roche radius, is the distance within which a celestial body, held together only by its own gravity, will disintegrate due to a second celestial body's tidal forces exceeding the first body's gravitational self-attraction. Inside the Roche limit, orbiting material will tend to disperse and form rings, while outside the limit, material will tend to coalesce. The term is named after Édouard Roche, the French astronomer who first calculated this theoretical limit in 1848.

Typically, the Roche limit applies to a satellite disintegrating due to tidal forces induced by its primary, the body about which it orbits. Some real satellites, both natural and artificial, can orbit within their Roche limits because they are held together by forces other than gravitation. Jupiter's moon Metis and Saturn's moon Pan are examples of such satellites, which hold together because of their tensile strength. In extreme cases, objects resting on the surface of such a satellite could actually be lifted away by tidal forces. A weaker satellite, such as a comet, could be broken up when it passes within its Roche limit.

Since tidal forces overwhelm gravity within the Roche limit, no large satellite can coalesce out of smaller particles within that limit. Indeed, almost all known planetary rings are located within their Roche limit (Saturn's E-Ring being a notable exception). They could either be remnants from the planet's proto-planetary accretion disc that failed to coalesce into moonlets, or conversely have formed when a moon passed within its Roche limit and broke apart.

Determining the Roche limit

The Roche limit depends on the rigidity of the satellite. At one extreme, a completely rigid satellite will maintain its shape until tidal forces break it apart. At the other extreme, a highly fluid satellite gradually deforms leading to increased tidal forces, causing the satellite to elongate, further compounding the tidal forces and causing it to break apart more readily. Most real satellites are somewhere between these two extremes, with internal friction, viscosity, and tensile strength rendering the satellite neither perfectly rigid nor perfectly fluid.

Rigid satellites

To calculate the rigid body Roche limit for a spherical satellite, the cause of the rigidity is neglected but the body is assumed to maintain its spherical shape while being held together only by its own self-gravity. Other effects are also neglected, such as tidal deformation of the primary, rotation of the satellite, and its irregular shape. These somewhat unrealistic assumptions greatly simplify the Roche limit calculation.

The Roche limit, $d$ , for a rigid spherical satellite orbiting a spherical primary is

$d = R\left( 2\;\frac {\rho_M} {\rho_m} \right)^{\frac{1}{3}}$ ,

where $R$ is the radius of the primary, $ρ M$ is the density of the primary, and $ρ m$ is the density of the satellite.

Notice that if the satellite is more than twice as dense as the primary (as can easily be the case for a rocky moon orbiting a gas giant) then the Roche limit will be inside the primary and hence not relevant.

Derivation of the formula

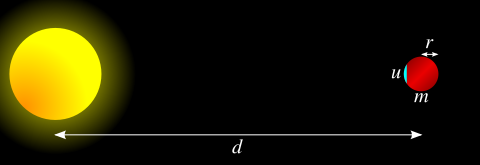

In order to determine the Roche limit, we consider a small mass $u$ on the surface of the satellite closest to the primary. There are two forces on this mass $u$ : the gravitational pull towards the satellite and the gravitational pull towards the primary. Since the satellite is already in orbital free fall around the primary, the tidal force is the only relevant term of the gravitational attraction of the primary.

The gravitational pull $F G$ on the mass $u$ towards the satellite with mass $m$ and radius $r$ can be expressed according to Newton's law of gravitation.

$F_G = \frac{Gmu}{r^2}$

The tidal force $F T$ on the mass $u$ towards the primary with radius $R$ and a distance $d$ between the centers of the two bodies can be expressed approximately as

$F_T = \frac{2GMur}{d^3}$ .

The Roche limit is reached when the gravitational force and the tidal force balance each other out.

$F_G = F_T \;$

$\frac{Gmu}{r^2} = \frac{2GMur}{d^3}$ ,

which gives the Roche limit, $d$ , as

$d = r \left( 2\;\frac{M}{m} \right)^{\frac{1}{3}}$ .

However, we don't really want the radius of the satellite to appear in the expression for the limit, so we re-write this in terms of densities.

For a sphere the mass $M$ can be written as

$M = \frac{4\pi\rho_M R^3}{3}$ where

R

is the radius of the primary.

And likewise

$m = \frac{4\pi\rho_m r^3}{3}$ where

r

is the radius of the satellite.

Substituting for the masses in the equation for the Roche limit, and cancelling out $4π / 3$ gives

$d = r \left( \frac{ 2 \rho_M R^3 }{ \rho_m r^3 } \right)^{1/3}$ ,

which can be simplified to the Roche limit:

$d = R\left( 2\;\frac {\rho_M} {\rho_m} \right)^{\frac{1}{3}}$ .

Fluid satellites

A more accurate approach for calculating the Roche Limit takes the deformation of the satellite into account. An extreme example would be a tidally locked liquid satellite orbiting a planet, where any force acting upon the satellite would deform it (into a prolate spheroid).

The calculation is complex and its result cannot be represented as an algebraic formula. Historically, Roche himself derived the following numerical solution for the Roche Limit:

$d \approx 2.44R\left( \frac {\rho_M} {\rho_m} \right)^{1/3}$

However, a better approximation that takes into account the primary's oblateness and the satellite's mass is:

$d \approx 2.423 R\left( \frac {\rho_M} {\rho_m} \right)^{1/3} \left( \frac{(1+\frac{m}{3M})+\frac{c}{3R}(1+\frac{m}{M})}{1-c/R} \right)^{1/3}$

where $c / R$ is the oblateness of the primary. The numerical factor is calculated with the aid of a computer.

The fluid solution is appropriate for bodies that are only loosely held together, such as a comet. For instance, comet Shoemaker-Levy 9's decaying orbit around Jupiter passed within its Roche limit in July 1992, causing it to fragment into a number of smaller pieces. On its next approach in 1994 the fragments crashed into the planet. Shoemaker-Levy 9 was first observed in 1993, but its orbit indicated that it had been captured by Jupiter a few decades prior.

Derivation of the formula

As the fluid satellite case is more delicate than the rigid one, the satellite is described with some simplifying assumptions. First, assume the object consists of incompressible fluid that has constant density $ρ m$ and volume $V$ that do not depend on external or internal forces.

Second, assume the satellite moves in a circular orbit and it remains in synchronous rotation. This means that the angular speed $ω$ at which it rotates around its centre of mass is the same as the angular speed at which it moves around the overall system barycenter.

The angular speed $ω$ is given by Kepler's third law:

$\omega^2 = G \, \frac{M + m}{d^3}.$

When M is very much bigger than m, this will be close to

$\omega^2 = G \, \frac{M}{d^3}.$

The synchronous rotation implies that the liquid does not move and the problem can be regarded as a static one. Therefore, the viscosity and friction of the liquid in this model do not play a role, since these quantities would play a role only for a moving fluid.

Given these assumptions, the following forces should be taken into account:

The force of gravitation due to the main body;
the centrifugal force in the rotary reference system; and
the self-gravitation field of the satellite.

Since all of these forces are conservative, they can be expressed by means of a potential. Moreover, the surface of the satellite is an equipotential one. Otherwise, the differences of potential would give rise to forces and movement of some parts of the liquid at the surface, which contradicts the static model assumption. Given the distance from the main body, our problem is to determine the form of the surface that satisfies the equipotential condition.

Radial distance of one point on the surface of the ellipsoid to the center of mass

Radial distance of one point on the surface of the ellipsoid to the centre of mass

As the orbit has been assumed circular, we know that the total gravitational force and centrifugal force acting on the main body cancel. Therefore, the force that affects the particles of the liquid is the tidal force, which depends on the position with respect to the center of mass (already considered in the rigid model). For small bodies, the distance of the liquid particles from the centre of the body is small in relation to the distance d to the main body. Thus the tidal force can be linearized, resulting in the same formula for F_T as given above. While this force in the rigid model depends only on the radius r of the satellite, in the fluid case we need to consider all the points on the surface and the tidal force depends on the distance Δd from the centre of mass to a given particle projected on the line joining the satellite and the main body. We call Δd the radial distance (see the picture). Since the tidal force is linear in Δd, the related potential is proportional to the square of the variable and for $m\ll M$ we have

$V_T = - \frac{3 G M }{2 d^3}\Delta d^2 \,$

We want to determine the shape of the satellite for which the sum of the self-gravitation potential and $V T$ is constant on the surface of the body. In general, such a problem is very difficult to solve, but in this particular case, it can be solved by a skillful guess due to the square dependence of the tidal potential on the radial distance Δd

Since the potential V_T changes only in one direction (i.e. the direction to the main body), the satellite can be expected to take an axially symmetric form. More precisely, we may assume that it takes a form of a solid of revolution. The self-potential on the surface of such a solid of revolution can only depend on the radial distance to the centre of mass. Indeed, the intersection of the satellite and a plane perpendicular to the line joining the bodies is a disc whose boundary by our assumptions is a circle of constant potential. Should the difference between the self-gravitation potential and V_T be constant, both potentials must depend in the same way on Δd. In other words, the self-potential has to be proportional to the square of Δd. Then it can be shown that the equipotential solution is an ellipsoid of revolution. Given a constant density and volume the self-potential of such body depends only on the eccentricity ε of the ellipsoid:

$V_s = V_{s_{0}} + G \pi \rho_m \cdot f (\epsilon) \cdot \Delta d^2,$

where $V_{s_0}$ is the constant self-potential on the intersection of the circular edge of the body and the central symmetry plane given by the equation Δd=0.

The dimensionless function f is to be determined from the accurate solution for the potential of the ellipsoid

$f(\epsilon) = \frac{1 - \epsilon^2}{\epsilon^3} \cdot \left[ \left(3-\epsilon^2 \right) \cdot \mathrm{arsinh} \left(\frac{\epsilon}{\sqrt{1-\epsilon^2}} \right) -3 \epsilon \right]$

and, surprisingly enough, does not depend on the volume of the satellite.

The graph of the dimensionless function f which indicates how the strength of the tidal potential depends on the eccentricity ε of the ellipsoid

Although the explicit form of the function f looks complicated, it is clear that we may and do choose the value of ε so that the potential V_T is equal to V_S plus a constant independent of the variable Δd. By inspection, this occurs when

$\frac{2 G \pi \rho_M R^3}{d^3} = G \pi \rho_m f(\epsilon)$

This equation can easily be solved numerically. The graph indicates that there are two solutions and thus the smaller one represents the stable equilibrium form (the ellipsoid with the smaller eccentricity). This solution determines the (eccentricity of the) tidal ellipsoid as a function of the distance to the main body. The derivative of the function f has a zero where the maximal eccentricity is attained. This corresponds to the Roche limit.

The derivative of f determines the maximal eccentricity. This gives the Roche limit.

More precisely, the Roche limit is determined by the fact that the function f, which can be regarded as a (nonlinear) measure of the force squeezing the ellipsoid towards a spherical shape, is bounded so that there is an eccentricity at which this contracting force becomes maximal. Since the tidal force increases when the satellite approaches the main body, it is clear that there is a critical distance at which the ellipsoid is torn up.

The maximal eccentricity can be calculated numerically as the zero of the derivative of f' (see the diagram). One obtains

$\epsilon_\textrm{max}\approx 0{.}86$

which corresponds to the ratio of the ellipsoid axes 1:1.95. Inserting this into the formula for the function f one can determine the minimal distance at which the ellipsoid exists. This is the Roche limit,

$d \approx 2{.}423 \cdot R \cdot \sqrt[3]{ \frac {\rho_M} {\rho_m} } \,.$

Roche limits for selected examples

The table below shows the mean density and the equatorial radius for selected objects in our solar system.

Primary	Density (kg/m³)	Radius (m)
Sun	1408	696,000,000
Jupiter	1326	71,492,000
Earth	5513	6,378,137
Moon	3346	1,738,100
Saturn	687.3	60,268,000
Uranus	1318	25,559,000
Neptune	1638	24,764,000

Using these data, the Roche Limits for rigid and fluid bodies can easily be calculated. The average density of comets is taken to be around 500 kg/m³.

The table below gives the Roche limits expressed in metres and in primary radii. The true Roche Limit for a satellite depends on its density and rigidity.

Body	Satellite	Roche limit (rigid)		Roche limit (fluid)
Body	Satellite	Distance (km)	R	Distance (km)	R
Earth	Moon	9,496	1.49	18,261	2.86
Earth	average Comet	17,880	2.80	34,390	5.39
Sun	Earth	554,400	0.80	1,066,300	1.53
Sun	Jupiter	890,700	1.28	1,713,000	2.46
Sun	Moon	655,300	0.94	1,260,300	1.81
Sun	average Comet	1,234,000	1.78	2,374,000	3.42

If the primary is less than half as dense as the satellite, the rigid-body Roche Limit is less than the primary's radius, and the two bodies may collide before the Roche limit is reached.

How close are the solar system's moons to their Roche limits? The table below gives each inner satellite's orbital radius divided by its own Roche radius. Both rigid and fluid body calculations are given. Note Pan and Naiad in particular, which may be quite close to their actual break-up points.

In practice, the densities of most of the inner satellites of giant planets are not known. In these cases (shown in italics), likely values have been assumed, but their actual Roche limit can vary from the value shown.

Primary	Satellite	Orbital Radius vs. Roche limit
Primary	Satellite	(rigid)	(fluid)
Sun	Mercury	104:1	54:1
Earth	Moon	41:1	21:1
Mars	Phobos	172%	89%
Mars	Deimos	451%	234%
Jupiter	Metis	~186%	~94%
	Adrastea	~188%	~95%
	Amalthea	175%	88%
	Thebe	254%	128%
Saturn	Pan	142%	70%
	Atlas	156%	78%
	Prometheus	162%	80%
	Pandora	167%	83%
	Epimetheus	200%	99%
	Janus	195%	97%
Uranus	Cordelia	~154%	~79%
	Ophelia	~166%	~86%
	Bianca	~183%	~94%
	Cressida	~191%	~98%
	Desdemona	~194%	~100%
	Juliet	~199%	~102%
Neptune	Naiad	~139%	~72%
	Thalassa	~145%	~75%
	Despina	~152%	~78%
	Galatea	153%	79%
	Larissa	~218%	~113%
Pluto	Charon	12.5:1	6.5:1
