Image:Constructive and Destructive Interference.gif
From Wikipedia, the free encyclopedia
Size of this preview: 490 × 479 pixels
Full resolution (720 × 704 pixels, file size: 28 KB, MIME type: image/gif)
This diagram image was uploaded in a raster image format such as PNG, GIF, or JPEG. However, it contains information that could be stored more efficiently and/or accurately in the SVG format, as a vector graphic. If possible, please upload an SVG version of this image. After doing so, please replace all instances of the previous version throughout Wikipedia (noted under the “File links” header), tag the old version with {{ Vector version available|NewImage.svg}} , and remove this tag. For more information, see Wikipedia:Preparing images for upload. For assistance with converting to SVG, please see the Graphics Lab. |
File history
Click on a date/time to view the file as it appeared at that time.
Date/Time | Dimensions | User | Comment | |
---|---|---|---|---|

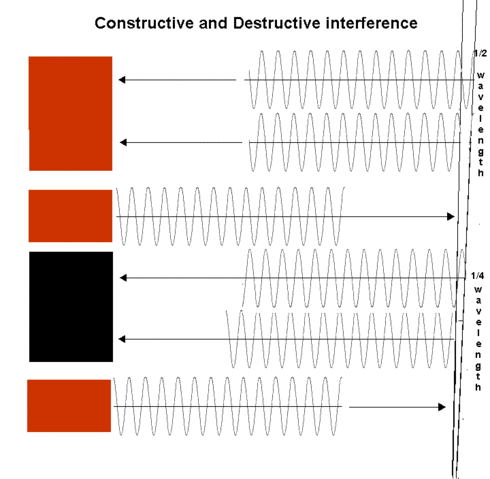

current | 03:26, 29 January 2006 | 720×704 (28 KB) | Patrick Edwin Moran | (Diagram illustrating constructive and destructive interference of red light incident on a thin film of varying thickness -- from less than 1/4 wavelength to greater than 1/2 wavelength. See Francis Weston Sears, ''Optics'', Addison-Wesley, 1949, for more) |
File links
The following pages on Schools Wikipedia link to this image (list may be incomplete):
Categories: Diagram images that should be in SVG format
