Image:Exp series.gif

From Wikipedia, the free encyclopedia

Wikimedia Commons logo This is a file from the Wikimedia Commons. The description on its description page there is shown below.
Commons is a freely licensed media file repository. You can help.
Description

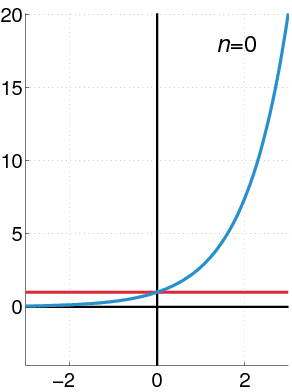

Illustration of the en:Exponential function

Source

self-made with MATLAB.

Date

Oleg Alexandrov 03:11, 30 August 2007 (UTC)

Author

Oleg Alexandrov

Permission
( Reusing this image)

see below



Public domain
I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.
