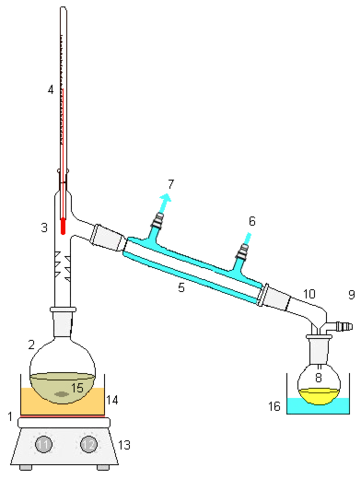

Laboratory distillation set-up using, without a fractionating column
1: Heat source
2: Still pot
3: Still head
4: Thermometer/Boiling point temperature
5: Condenser
6: Cooling water in
7: Cooling water out
8: Distillate/receiving flask
9: Vacuum/gas inlet
10: Still receiver
11: Heat control
12: Stirrer speed control
13: Stirrer/heat plate
14: Heating (Oil/sand) bath
15: Stirrer bar/anti-bumping granules
16: Cooling bath.
