Image:Normal and tangent illustration.png

Made by myself with matlab.

I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide. In case this is not legally possible: I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law. Afrikaans | Alemannisch | Aragonés | العربية | Asturianu | Български | Català | Cebuano | Česky | Cymraeg | Dansk | Deutsch | Eʋegbe | Ελληνικά | English | Español | Esperanto | Euskara | Estremeñu | فارسی | Français | Galego | 한국어 | हिन्दी | Hrvatski | Ido | Bahasa Indonesia | Íslenska | Italiano | עברית | Kurdî / كوردی | Latina | Lietuvių | Latviešu | Magyar | Македонски | Bahasa Melayu | Nederlands | ‪Norsk (bokmål)‬ | ‪Norsk (nynorsk)‬ | 日本語 | Polski | Português | Ripoarisch | Română | Русский | Shqip | Slovenčina | Slovenščina | Српски / Srpski | Suomi | Svenska | ไทย | Tagalog | Türkçe | Українська | Tiếng Việt | Walon | ‪中文(简体)‬ | ‪中文(繁體)‬ | zh-yue-hant | +/-

	This diagram image should be recreated using vector graphics as an SVG file. This has several advantages; see Commons:Media for cleanup for more information. If an SVG form of this image is already available, please upload it. After uploading an SVG, replace this template with {{ vector version available|new image name.svg}}.
العربية | Български | Català | Česky | Dansk | Deutsch | English | Esperanto | Español | Français | Galego | 한국어 | Italiano | Magyar | Lietuvių | Nederlands | 日本語 | Polski | Português | Română | Русский | Suomi | Svenska | Türkçe | Українська | ‪中文(繁體)‬ | ‪中文(简体)‬ | +/-

Source code

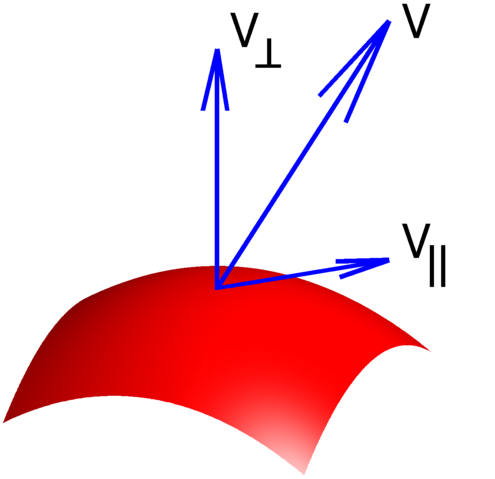

% an illustration of tangent and normal components of a vector to a surface

% a few settings
BoxSize=5;
N=100;
gridsize=BoxSize/N;
lw=3;  % linewidth
fs=30; % fontsize

% the function giving the surface and its gradient
f=inline('10-(x.^2+y.^2)/15', 'x', 'y');
fx=inline('-2*x/15', 'x', 'y');
fy=inline('-2*y/15', 'x', 'y');

% calc the surface
XX=-BoxSize:gridsize:BoxSize;
YY=-BoxSize:gridsize:BoxSize;
[X, Y]=meshgrid(XX, YY);
Z=f(X, Y);

% plot the surface
H=figure(1); clf; hold on; axis equal; axis off;
view (23, 24);
surf(X, Y, Z, 'FaceColor','red', 'EdgeColor','none', ...
       'AmbientStrength', 0.3, 'SpecularStrength', 1, 'DiffuseStrength', 0.8);
camlight right; lighting phong; % make nice lightning

% the vector at the current point, as well as its tangent and normal components
Z0=[0, 0, f(0, 0)];
V=4*[1, 1, 2];
n=[fx(0, 0), fy(0, 0), -1]; n=n/norm(n);
Vn=n*dot(V, n);
Vt=V-Vn;

% graph the vectors
HH=quiver3(Z0(1), Z0(2), Z0(3), V(1), V(2), V(3), 0);    set(HH(1), 'linewidth', lw); set(HH(2), 'linewidth', lw)
HH=quiver3(Z0(1), Z0(2), Z0(3), Vt(1), Vt(2), Vt(3), 0); set(HH(1), 'linewidth', lw); set(HH(2), 'linewidth', lw)
HH=quiver3(Z0(1), Z0(2), Z0(3), Vn(1), Vn(2), Vn(3), 0); set(HH(1), 'linewidth', lw); set(HH(2), 'linewidth', lw)

% plot the text
PV=Z0+V;  text(PV(1), PV(2), PV(3), '{ V}', 'fontsize', fs)
PV=Z0+Vt; text(PV(1), PV(2), PV(3), '{ V}_{||}', 'fontsize', fs)
PV=Z0+Vn; text(PV(1), PV(2), PV(3), '{ V}_{\perp}', 'fontsize', fs)

% save to file
print('-dpng',  '-r300', 'normal_and_tangent_illustration.png');

% The resulting picture was tweaked in Gimp, especially the text, to look nice
