M1 motorway
2008/9 Schools Wikipedia Selection. Related subjects: Geography of Great Britain; Road transport
M1 Motorway | ||
Road of the United Kingdom |
||
Length | 193 miles (310.6 km) | |
Direction | South - North | |
Start | London ( A406) | |
Primary destinations | Luton Northampton Leicester Nottingham Derby Sheffield Wakefield Leeds. |
|
End | Hook Moor ( A1(M)) | |
Construction dates | 1959 - 1999 | |
Motorways joined | 6A - M25 motorway 7 - M10 motorway 17 - M45 motorway 19 - M6 motorway 21 - M69 motorway 32 - M18 motorway 42 - M62 motorway 43 - M621 motorway 48 - A1(M) motorway |
|
Euroroute(s) |
|
|
The M1 is a major south - north motorway in England connecting London to West Yorkshire, where it joins the A1(M) near Aberford. While the M1 is considered to be the first inter-urban motorway to be completed in the United Kingdom, the first road to be built to motorway standard in the country was the Preston Bypass, which later became part of the M6.

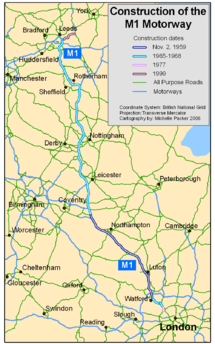

The motorway is 193 miles (310 km) long and was constructed in four phases; the majority of the motorway was opened in 1959 and between 1965 and 1968. The two ends of the motorway were extended later; the southern end in 1977 and the northern end in 1999.
It forms part of the unsigned European route E13.
History
First Section, 1959
The first section of the motorway opened between junction 5 ( Watford) and junction 18 ( Crick/ Rugby) on November 2, 1959 together with the motorway's two spurs, the M10 (from junction 7 to south of St Albans originally connecting to the A1) and the M45 (from junction 17 to the A45 and Coventry).
The M1 was officially inaugurated from Slip End, this is celebrated by a large concrete slab on the bridge next to the village with inscription "London-Yorkshire Motorway, This slab was sealed by the Rt Hon Harold Watkinson M.P. Minister of transport inauguration day, 24th March 1958".
This section of the M1 broadly follows the route of the A5 north-west. It started at the Watford Bypass ( A41), which runs south-east to meet the A1 at Apex corner, and ended on the A5 at Crick. The M10 spur motorway connected the M1 to the North Orbital Road ( A405/ A414, a precursor of the M25) where it also meet the A5 (now renumbered here as the A5183) and, two miles to the east via the A414, to the A6 (also renumbered as the A1081).
Although the whole of first section opened in 1959 it was built in two parts with the northern part (junctions 10 to 18) being built by John Laing and the southern part (the St Albans Bypass) being built by Tarmac Construction.
There has never been a Junction 3 between Junctions 2 and 4. There were initially plans for a Junction 3 to be completed, but these have never materialised.
Rugby to Leeds, 1965 to 1968
The continuation of the motorway from junction 18 towards Yorkshire was carried out as a series of extensions between 1965 and 1968. Diverging from the A5, the motorway takes a more northerly route through the East Midlands, via Leicester, Loughborough, Nottingham to Sheffield where the M18 splits from the M1 at junction 32 to head to Doncaster.
Originally, the M1 was planned to end at Doncaster; however, it was decided to make what was going to be the "Leeds and Sheffield Spur", the primary route with the 11 mile section to the A1(M) south of Doncaster given a separate motorway number.
From junction 32, the motorway passes between Sheffield and Rotherham, towards Barnsley then heads towards Wakefield and reaches the original end of the motorway at junction 44 to the east of Leeds. There were plans to route the M1 from just south of junction 42 where it interchanges with the M62, round the west of Leeds to the A1 at Dishforth; however the existing route to the east of Leeds was selected. With the M62 and M621, the M1 forms a ring of motorways around Leeds.
Leeds South Eastern Urban Motorway, 1972
In 1972 an extension of the M1 was opened into central Leeds as the Leeds South Eastern Motorway where it met the Leeds South Western Motorway (M621) coming north-east from the M62 at junction 3.
Leeds to Hook Moor, 1999
Between 1996 and 1999 the M1 section north of the M62 underwent a major reconstruction and extension to take the M1 on a new route to the A1(M) at Aberford. The new road involved the construction of a series of new junctions, bridges and viaducts to the east of Leeds. When the new section of M1 was completed and opened in 1999, the Leeds South Eastern Motorway section of the M1 was redesignated as the M621 and the junctions were given new numbers (M621 junctions 4 to 7).
London extensions, 1966, 1967 and 1977
The M1 was extended south from its original starting point at junction 5 towards London in three stages. The first stage, opened in 1966, took the motorway south-east, parallel to the A41 to meet the A5 at junction 4 south of Elstree. The second phase continued east to Scratchwood (where the London Gateway Service Area occupies the location of the missing junction 3 from where an unbuilt spur would have connected to the A1 at Stirling Corner), then south to run alongside the Midland Main Line towards Hendon where it meets the A1 again at junction 2 via a tightly curved flyover section. These flyovers connecting from the A1 were originally both for northbound traffic; the left one as the onramp to the M1, the right one going over the A1/A41 junction beneath to rejoin the A1 northbound.
The current junction 2 is about 650 yds (600 m) south of the original junction. Southbound traffic originally left the motorway via a slip road which passed under the A41/A1 Mill Hill Bypass and looped round to join it at Fiveways Interchange. This slip road is still in place and maintained, though not accessible to traffic. The northbound slip road from the A1 is now partially used as the entrance way to a business park but no longer reaches the northbound carriageway as it is cut off by the motorway continuing south.
The final section of the M1 was opened to junction 1 at Staples Corner in 1977. There the motorway meets the North Circular Road (A406) at a grade separated junction and roundabout. Plans made in the 1960s would have seen the motorway continue through the junction on an elevated roadway to end at West Hampstead where it would have met the North Cross Route, the northern section of the London Motorway Box, a proposed ring of urban motorway around the central area. The layout of the Staples Corner junction was originally built in accordance with these plans although most of the London Ringways Plan had been cancelled by 1973.
Improvements underway
Junction 6a to 10 widening
Works to widen the M1, reducing congestion and improving both safety and journey time reliability, commenced mid March 2006 and are expected to be completed by December 2008
Junction 25 to 28 widening
Widening the M1 from Junction 25 to 28.
Junction 31 to 32 Widening
Widening the M1 near Sheffield to four lanes.
Proposed improvements
The Highways Agency is proposing to widen approximately 15 miles (25km) of the M1 motorway between Junction 10, south of Luton, and Junction 13 where it joins with the A421. This will upgrade the motorway from 3 to 4 lanes. There will also be improvements to junctions 11, 12 and 13..
Roadworks
Roadworks are currently taking place to increase lane amount between junctons 6a and 10. Traffic speed has been limited to 50mph around roadworks, and the date of completion is currently estimated to be December 2008.
Junctions
M1 Motorway | ||
Southbound exits | Junction | Northbound exits |
A406: North Circular, Brent Cross | J1 | Start of Motorway |
A1: The City | J2 | No Access |
London Gateway services | ||
A41: Edgware | J4 | No Access |
A41: Harrow A4008: Watford |
J5 | A41: Aylesbury, Watford |
A405: North Watford | J6 | A405: St Albans, Heathrow Airport, Harlow |
M25: Harlow, Dartford Tunnel, Heathrow Airport | J6a | No Access |
M10: St Albans, Hatfield | J7 | No Access |
A414: Hemel Hempstead | J8 | A414: Hemel Hempstead |
A5: Whipsnade | J9 | A5: Whipsnade |
A1081: Luton Airport | J10 | A1081: Luton Airport |
A505: Luton, Dunstable | J11 | A505: Luton, Dunstable |
Toddington services | ||
A5120: Flitwick, Houghton Regis | J12 | A5120: Flitwick, Woburn |
A421: Bedford A507:Woburn, Ampthill |
J13 | A421: Milton Keynes, Bedford A507: Ampthill |
A509: Milton Keynes, Newport Pagnell | J14 | A509: Milton Keynes, Newport Pagnell |
Newport Pagnell services | ||
A45: Northampton A508 Milton Keynes | J15 | A45: Northampton A508 Milton Keynes |
A43: Northampton, Oxford | J15a Northampton services |
A43: Northampton, Oxford |
A45: Northampton | J16 | A45: Daventry |
Watford Gap services | ||
No Access | J17 | M45: Coventry |
A428: Daventry, DIRFT | J18 | DIRFT, A5: Hinckley A428: Rugby |
A14: Felixstowe, Corby, Kettering M6: The NORTH WEST |
J19 | M6: The NORTH WEST |
A4303: Lutterworth, Rugby | J20 | A4303: Lutterworth A4304: Market Harborough |
M69: Coventry, Birmingham A5460: Leicester |
J21 | M69: Coventry A5460: Leicester |
Leicester Forest East services | ||
No Access | J21A | A46: Leicester, Newark |
A50: Leicester A511: Coalville Markfield services |
J22 | A511: Coalville, Ashby-de-la-Zouch Markfield services |
A512: Loughborough, Ashby-de-la-Zouch | J23 | A512: Loughborough |
A42(M42): The SOUTH WEST, Tamworth, Birmingham, Ashby-de-la-Zouch | J23a | A453: East Midlands Airport Donington Park services A42(M42): The SOUTH WEST, Tamworth, Birmingham |
A6: Loughborough A453: East Midlands Airport Donington Park services |
J24 | A50: Stoke A6: Derby A453: Nottingham South/Centre |
A50: Stoke A6: Derby |
J24a | No Access |
A52: Nottingham South, Derby | J25 | A52: Derby, Nottingham West/Centre |
Trowell Motorway Services | ||
A610: Nottingham, Ilkeston | J26 | A610: Ripley, Nottingham North/Centre |
A608: Heanor, Hucknall | J27 | A608: Mansfield |
A38: Matlock | J28 | A38: Mansfield, Matlock |
Tibshelf services | ||
A617: Mansfield, Matlock | J29 | A617: Chesterfield |
Under construction A632: Chesterfield / Bolsover | J29a | Under construction A632: Chesterfield / Bolsover |
A616: Chesterfield, Newark | J30 | A6135: Sheffield, Worksop |
Woodall services | ||
A57: Worksop | J31 | A57: Worksop |
M18: The NORTH, Doncaster, Hull | J32 | M18: The North, Doncaster, Hull |
A630: Sheffield, Rotherham, Robin Hood Airport | J33 | A640: Sheffield, Rotherham, Robin Hood Airport |
A6109: Meadowhall, Rotherham | J34 | A6178: Meadowhall, Rotherham, Robin Hood Airport |
A629: Rotherham | J35 | A629: Rotherham |
No Access | J35a | A616: Manchester |
A61: Sheffield | J36 | A61: Barnsley |
A628: Barnsley, Manchester | J37 | A628: Barnsley, Manchester |
A637: Huddersfield, Barnsley | J38 | A637: Huddersfield, Barnsley |
Woolley Edge services | ||
A636: Denby Dale | J39 | A636: Denby Dale |
A638: Wakefield, Dewsbury | J40 | A638: Dewsbury, Batley, Wakefield |
A650: Wakefield, Morley | J41 | A650: Wakefield, Morley |
M62: Hull, Manchester | J42 | M62: Manchester, Bradford, Hull |
No Access | J43 | M621: Leeds |
A639: Leeds | J44 | A639: Leeds |
Under construction A63: Leeds | J45 | Under construction A63: Leeds |
A6120: Leeds | J46 | A6120: Leeds A63: Selby |
A656: Castleford A642: Garforth |
J47 | A642: Garforth The South (A1) |
Start of Motorway | A1(M), J43 | A1(M): The NORTH, Wetherby |
List of sights visible from the M1
- Midland Main Line & Thameslink (between London Gateway services and junction 1, and also between junctions 11 and 12)
- Remains of Hertfordshire Oil Storage Terminal (Buncefield) (after junction 8 northbound)
- The Point Milton Keynes (between junction 13 to 14)
- West Coast Main Line (runs alongside between junctions 16 and 18)
- Rugby VLF transmitter (between junctions 18 and 19)
- East Midlands Airport (between junctions 23A and 24)
- Ratcliffe-on-Soar Power Station (between junctions 24 and 25)
- Sutton Scarsdale Hall (on southern approach to junction 29 - visible only to southbound traffic)
- Hardwick Hall (between junctions 28 and 29)
- Bolsover Castle (between junctions 29 and 30)
- Tinsley Viaduct cooling towers (Sheffield, near junction 34)
- Meadowhall shopping centre (Sheffield, near junction 34)
- Emley Moor mast (between Woolley Edge services and junction 38)
- Ferrybridge Power Station (at junction 42 slip road North and Southbound)
Notable Events
On 8 January 1989 a Boeing 737 crashed onto the embankment of the M1 whilst attempting an emergency landing into East Midlands Airport in Leicestershire.
On 6 September 1997 large sections of the northbound carriageway were closed between London and Althorp, Northamptonshire to allow for the funeral precession of Diana, Princess of Wales. In an unprecedented event, police allowed pedestrians onto the normally busy northbound carriageway almost the entire length of the route to pay their respects.
In 2002, a section of the M1 near Milton Keynes was cleared using mobile police roadblocks to allow for filming of the movie 28 days later.
An 18 mile stretch of the motorway was closed entirely on the morning of 11 December 2005 following a massive explosion and fire at the Buncefield Oil Depot which is situated less than half a mile from the M1.
