Rail transport is the conveyance of passengers and goods by means of wheeled vehicles specially designed to run along railways or railroads. Rail transport is part of the logistics chain, which facilitates international trade and economic growth in most countries.

Typical railway tracks consist of two parallel rails, normally made of steel, secured to cross beams, termed sleepers (UK and Australia) or ties (US). The sleepers maintain a constant distance between the two rails; a measurement known as the " gauge" of the track. To maintain the alignment of the track it is either laid on a bed of ballast or else secured to a solid concrete foundation. The whole is referred to as permanent way (UK and Australia usage) or right-of-way (North American usage).

Railway rolling stock, which is fitted with metal wheels, moves with low frictional resistance when compared to road vehicles. On the other hand, locomotives and powered cars normally rely on the point of contact of the wheel with the rail for traction and adhesion (the part of the transmitted axle load that makes the wheel "adhere" to the smooth rail). While this is usually sufficient under normal dry rail conditions, adhesion can be reduced or even lost through the presence of unwanted material on the rail surface, such as moisture, grease, ice, or dead leaves.

General

Rail transport is an energy-efficient and capital-intensive means of mechanised land transport and is a component of logistics. Along with various engineered components, rails constitute a large part of the permanent way. They provide smooth and hard surfaces on which the wheels of the train can roll with a minimum of friction. As an example, a typical modern wagon can hold up to 125 tons of freight on two four-wheel bogies/trucks (100 tons in UK). The contact area between each wheel and the rail is tiny, a strip no more than a few millimetres wide, which minimizes friction. In addition, the track distributes the weight of the train evenly, allowing significantly greater loads per axle / wheel than in road transport, leading to less wear and tear on the permanent way. This can save energy compared with other forms of transportation, such as road transport, which depends on the friction between rubber tires and the road. Trains also have a small frontal area in relation to the load they are carrying, which cuts down on forward air resistance and thus energy usage, although this does not necessarily reduce the effects of side winds.

Due to these various benefits, rail transport is a major form of public transport in many countries. In Asia, for example, many millions use trains as regular transport in India, China, South Korea and Japan. It is also widespread in European countries. By comparison, intercity rail transport in the United States is relatively scarce outside the Northeast Corridor, although a number of major U.S. cities have heavily-used, local rail-based passenger transport systems or light rail or commuter rail operations.

The vehicles travelling on the rails, collectively known as rolling stock, are arranged in a linked series of vehicles called a train, which can include a locomotive if the vehicles are not individually powered. A locomotive (or "engine") is a powered vehicle used to haul a train of unpowered vehicles. In the USA, individual unpowered vehicles are known generically as cars. These may be passenger carrying or used for freight purposes. For passenger-carrying vehicles, the term carriage or coach is used, while a freight-carrying vehicle is known as a freight car in the United States and a wagon or truck in Great Britain. An individually-powered passenger vehicle is known as a railcar or a power car; when one or more as these are coupled to one or more unpowered trailer cars as an inseparable unit, this is called a railcar set or multiple unit.

History

Stone rails

The earliest evidence of a railway found thus far was the 6-kilometre (3.7 mi) Diolkos wagonway, which transported boats across the Corinth isthmus in Greece during the 6th century BC. Trucks pushed by slaves ran in grooves in limestone, which provided the track element, preventing the wagons from leaving the intended route. The Diolkos ran for over 1300 years, until 900 AD. The first horse-drawn wagonways also appeared in ancient Greece, with others to be found on Malta and various parts of the Roman Empire, using cut-stone tracks. An example of stone track still exists on Dartmoor, England, where the Haytor Granite Tramway was built in 1820 using grooved granite blocks.

Wooden rails

Railways began reappearing in Europe after the Dark Ages following the collapse of the Roman Empire. The earliest known record of a railway in Europe from this period is a stained-glass window in the Minster of Freiburg im Breisgau dating from around 1350. By 1550, narrow gauge railways operating with wooden rails were common in mines in Europe. The first railways in Great Britain (also known as wagonways) were constructed in the early 17th century, mainly for transporting coal from mines to canal wharfs where it could be transferred to a boat for onward shipment. The earliest recorded examples are the Wollaton Wagonway in Nottinghamshire and the Bourtreehill - Broomlands Wagonway in Irvine, Ayrshire. Other examples can be found in Broseley in Shropshire, where wooden rails and flanged wheels were utilised, as on a modern railway. However, the rails were prone to wear out under the pressure, and had to be replaced regularly.

Iron plate rail

In 1768, the Coalbrookdale Iron Works laid cast iron plates on top of the wooden rails, providing a more durable load-bearing surface. These were later used by Benjamin Outram at his foundry in Ripley, Derbyshire, the first time standardised components were produced. It was these that led to the name "platelayer" for workers on the permanent way. The advantage was that a considerable variation in wheel spacing (gauge) could be accommodated. However, wheels would bind against the upright part of the plate, and mud and stones would accumulate. On the Little Eaton Gangway in 1799, where Outram used passing loops on the single track, moveable plates were provided, called "pointers", which became shortened to "points".

Edge rail

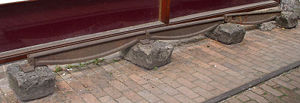

From the late 18th century, iron "edge rails" began to appear. The British civil engineer William Jessop designed smooth iron edge rails, which were used in conjunction with flanged iron wheels, introducing them on a route between Loughborough and Nanpantan, Leicestershire, as an adjunct to the Charnwood Forest Canal, in 1793-4. In 1803, Jessop opened the Surrey Iron Railway in south London, arguably the world's first horse-drawn public railway. Being of cast iron these rails were short, around three feet long, of a "fish-bellied" design. They had a foot at each end by means of which they were fastened to stone blocks in the ground.

Wrought iron and steel

Cast iron is a brittle material and the short lengths meant that they soon became uneven. However, developments in the process of hot rolling iron meant that longer length rails could be produced. In 1805, the first wrought iron rails were produced at Bedlington Ironworks near Durham. The first steel rails were produced by Robert Forester Mushet and laid at Derby station in 1857. Modern railways still use steel rails, but they are typically welded together to form lengths of continuous welded rail which removes the additional wear and tear on rolling stock caused by the tiny differences in rail surface height at the joint between adjacent rail sections.

Motive power

Steam locomotives

The first locomotive to haul a train of wagons on rails was designed by Cornish engineer Richard Trevithick, and was demonstrated in 1804 on a plateway at Merthyr Tydfil, South Wales. Although the locomotive successfully hauled the train, the rail design was not a success, partly because its weight broke a number of the brittle cast-iron plates. Despite this setback, another area of South Wales pioneered rail operations, when, in 1806, a horse-drawn railway was built between Swansea and Mumbles: the Swansea-Mumbles railway started carrying fare-paying passengers in 1807 – the first in the world to do so.

In 1811, John Blenkinsop designed the first successful and practical railway locomotive. He patented a system of moving coals by a rack railway worked by a steam locomotive (patent no. 3431), and a line was built connecting the Middleton Colliery to Leeds. The locomotive ( The Salamanca) was built in 1812 by Matthew Murray of Fenton, Murray and Wood. The Middleton Railway was the first railway to successfully use steam locomotives on a commercial basis. It was also the first railway in Great Britain to be built under the terms laid out in an Act of Parliament. Blenkinsop's engine had double-acting cylinders and, unlike the Trevithick pattern, no flywheel. Due to previous experience with broken rails, the locomotive was made very light and this brought concerns about insufficient adhesion, so instead of driving the wheels directly, the cylinders drove a cogwheel through spur gears, the cogwheel providing traction by engaging with a rack cast into the side of the rail.

In Scotland, the Kilmarnock and Troon Railway was the first railway constructed, and was authorised by Act of Parliament in 1808. The civil engineer leading the project was William Jessop, and its 1811 construction meant that it was the first railway in Scotland to use a steam locomotive, while it was the only line in Scotland for 14 years. Its representation appeared in the Coat of Arms of the Burgh of Troon. The line was intended to carry coal for the Duke of Portland; and ran services between Kilmarnock and Troon Harbour. The line began life as a 9.5 mile (16 km), double track 4 ft 0 in (1,219 mm) gauge, horse-drawn waggonway. It was built using cast iron plate rails with an inner flange. A George Stephenson-built locomotive, his second one from Killingworth Colliery, was tried on the main line in 1817, but the weight of the engine broke the cast iron plate rails. It worked better when wooden rails were used, and the locomotive remained in use until 1848.

The Stockton and Darlington Railway opened in northern England in 1825 to be followed five years later by the Liverpool and Manchester Railway, considered to be the world's first "Inter City" line. The rail gauge (the distance between the two rails of the track) was used for the early wagonways, and had been adopted for the Stockton and Darlington Railway. The 4 ft 8½ in (1,435 mm) width became known as the international " standard gauge", used by about 60 percent of the world's railways. The Liverpool and Manchester Railway, on the other hand, proved the viability of rail transport when, after organising the Rainhill Trials of 1829, Stephenson's Rocket successfully hauled a load of 13 tons at an average speed of 12 miles per hour. The company took the step of working its trains from its opening entirely by steam traction. Railways then soon spread throughout the United Kingdom and the world, and became the dominant means of land transport for nearly a century, until the invention of aircraft and automobiles, which prompted a gradual decline in railways.

The first railroad in the United States may have been a gravity railroad in Lewiston, New York in 1764. The 1810 Leiper Railroad in Pennsylvania was intended as the first permanent railroad, and the 1826 Granite Railway in Massachusetts was the first commercial railroad to evolve through continuous operations into a common carrier. The Baltimore and Ohio, opened in 1830, was the first to evolve into a major system. In 1867, the first elevated railroad was built in New York. In 1869, the symbolically important transcontinental railroad was completed in the United States with the driving of a golden spike at Promontory, Utah. The development of the railroad in the United States helped reduce transportation time and cost, which allowed migration towards the west. Railroads increased the accessibility of goods to consumers, thus allowing individuals and capital to flow westward. Railroads created national markets characterized by the 'law of one price' by lowering difference in price charged for commodity between suppliers and demanders. Railroads increased social savings, and were the largest contributors of any innovation before 1900.

The South American experience regarding railways was first achieved in 1854, when a line was laid between the Chilean towns of Caldera and Copiapo. However, the first concerted trans-Andine attempt between Argentina and Chile did not occur until the 1870s, due to the financial risks involved in such a project. It was not until 1887 that the Argentinians began to construct their part of the enterprise, with the Chileans beginning construction in 1889, though by 1893, work had ceased due to financial constraints. In 1896, the Transandine Railway Company was created in London to purchase the existing railways and construct a continuous line between Argentina and Chile that would improve transport and communication links in South America. This was finally completed in 1908, when the Argentine and Chilean stretches of track were joined.

Dieselisation

Dieselisation was the replacement of the steam locomotive with the diesel-electric locomotive (often referred to as a " diesel locomotive"), a process which began in the 1930s and is now substantially complete worldwide.

Dieselisation took place largely because of the reduction in operating costs it allowed. Steam locomotives require large pools of labour to clean, load, maintain and run. They also require extensive service, coaling and watering facilities. Diesel locomotives require significantly less time and labour to operate and maintain.

After World War II, dramatically increased labour costs in the Western World made steam an increasingly costly form of motive power. At the same time, the war had forced improvements in internal combustion engine technology that made diesel locomotives cheaper and more powerful. The post war world also re-aligned the business and financial markets, as did world geo-politics as in the Cold War (1947-1953).

Electrification

Robert Davidson started to experiment with an electrical railway car in Scotland in 1838. By 1839 he had completed and presented a 4.8 m long carriage that weighed six tons, including batteries. It reached a maximum speed of 6.4 kilometres per hour.

Magnus Volk opened his electric railway in Brighton in 1883.

The use of overhead wires conducting electricity, invented by Granville T. Woods in 1888, among several other improvements, led to the development of electrified railways, the first of which in the United States was operated at Coney Island in 1892. Richmond, Virginia had the first successful electrically-powered trolley system in the United States. Designed by electric power pioneer Frank J. Sprague, the trolley system opened its first line in January, 1888. Richmond's hills, long a transportation obstacle, were considered an ideal proving ground. The new technology soon replaced horse-powered streetcars.

Sweden got the perhaps first fully electrified developed railway that efficiently transported commuters as well as goods, in 1895. At the time it ran from close to central Stockholm to Rimbo, located in the countryside Roslagen. It is still in use to commuters today but runs only about a third of its biggest extent, much due to it not using the standard gauge but 3ft (891mm).

In the USSR the phenomenon of children's railways was developed in the 1930s (the world's first one was opened on 24 July 1935). Fully operated by children, they were extracurricular educational institutions, where teenagers learned railway professions. A lot of them are functioning in post-Soviet states and Eastern European countries.

Many countries since the 1960s have adopted high-speed railways. On 3 April 2007, the French TGV set a new train speed record. The train, with a modified engine and wheels, reached 574.8  km/h (357.2  mph). The record attempt took place on the new LGV Est line between Paris and Strasbourg using a specially equipped TGV Duplex train. The overhead lines had also been modified for the attempt to carry 31,000 V rather than the line's normal 25,000 V. On 24 August 2005, the Qingzang railway became the highest railway line in the world, when track was laid through the Tanggula Mountain Pass at 5,072 meters (16,640 ft) above sea level in the Tanggula Mountains, Tibet.

Operations

A railway can be broken down into two major components. Firstly, there are the items which "move", also referred to as the rolling stock, which include locomotives, passenger carrying vehicles (or coaches), freight carrying vehicles (or goods wagons). Secondly are the "fixed" components, usually referred to as the railway's infrastructure, including the permanent way and ancillary buildings that are necessary for a railway to function.

Rolling stock

A locomotive is the vehicle that provides the motive power for a train. A locomotive has no payload capacity of its own, and its sole purpose is to move the train along the tracks. Traditionally, locomotives pull trains from the front.

A railroad car is a vehicle used for the haulage of either passengers or freight. Most cars carry a "revenue" load, although "non-revenue" cars exist for the railroad's own use, such as for maintenance-of-way purposes.

Signalling

Railway signalling is a system used to control railway traffic safely to prevent trains from colliding. Being guided by fixed rails, trains are uniquely susceptible to collision since they frequently operate at speeds that do not enable them to stop quickly or, in some cases, within the driver's sighting distance.

Most forms of train control involve movement authority being passed from those responsible for each section of a rail network (e.g., a signalman or stationmaster) to the train crew. The set of rules and the physical equipment used to accomplish this control determine what is known as the method of working (UK), method of operation (US) or safeworking (Aus.). Not all methods require the use of signals, and some systems are specific to single track railways. The signalling process is traditionally carried out in a signal box or interlocking tower, a small building that houses the lever frames required for the signalman to operate switches and signal equipment. These are placed at various intervals along the route of a railway, controlling specified sections of track. More recent technological developments have made such operational doctrine superfluous, with the centralization of signalling operations to regional control rooms. This has been facilitated by the increased use of computers, allowing vast sections of track to be monitored from a single location.

Right of way

Railway tracks are laid upon land owned or leased by the railway. Owing to the requirements for large radius turns and modest grades, rails will often be laid in circuitous routes. Public carrier railways are typically granted limited rights of eminent domain (UK:compulsory purchase). In many cases in the 19th century, railways were given additional incentives in the form of grants of public land. Route length and grade requirements can be reduced by the use of alternating earthen cut and fill, bridges, and tunnels, all of which can greatly increase the capital expenditures required to develop a right of way, while significantly reducing operating costs and allowing higher speeds on longer radius curves. In densely urbanized areas such as Manhattan, railways are sometimes laid out in tunnels to minimize the effects on existing properties (see condemnation).

Safety and railway disasters

Trains can travel at very high speed; however, they are heavy, are unable to deviate from the track and require a great distance to stop. Although rail transport is considered one of the safest forms of travel, there are many possibilities for accidents to take place. These can vary from the minor derailment (jumping the track), a head-on collision with another train and collision with an automobile or other vehicle at a level crossing/grade crossing. Level crossing collisions are relatively common in the United States where there are several thousand each year killing about 500 people (the comparable figures in the United Kingdom are 30 and 12 collisions and casualties, respectively). For information regarding major accidents, see List of rail accidents.

The most important safety measures are railway signalling and gates at level/grade crossings. Train whistles warn of the presence of a train, while trackside signals maintain the distances between trains. In the United Kingdom, vandalism or negligence is thought responsible for about half of rail accidents. Railway lines are zoned or divided into blocks guarded by combinations of block signals, operating rules, and automatic-control devices so that one train, at most, may be in a block at any time.

Compared with road travel, railways remain relatively safe. Annual death rates on roads are over 40,000 in the United States, about 3,000 in the United Kingdom and 900 in Australia, compared with 1,000 rail-related fatalities in the United States,under 20 in the UK and 10 in Australia. (These figures do not account for differences in passenger-miles traveled by mode; see e.g. Transportation safety in the United States.)

Trackage

A typical railway/railroad track consists of two parallel steel (or in older networks, iron) rails, generally anchored perpendicular to beams, termed sleepers or ties, of timber, concrete, or steel to maintain a consistent distance apart, or gauge. The rails and perpendicular beams are usually then placed on a foundation made of concrete or compressed earth and gravel in a bed of ballast to prevent the track from buckling (bending out of its original configuration) as the ground settles over time under the weight of the vehicles passing above. The vehicles traveling on the rails are arranged in a train; a series of individual powered or unpowered linked vehicles, displaying markers. These vehicles (referred to, in general, as cars, carriages or wagons) move with much less friction than do vehicles riding on rubber tires on a paved road, and the locomotive that pulls the train tends to use energy far more efficiently as a result.

Trackage, consisting of sleepers/ties and rails, may be prefabricated or assembled in place. Rails may be composed of segments welded or bolted, and may be of a length comparable to that of a railcar or two or may be many hundreds of feet long.

The surface of the ballast is sloped around curves to reduce lateral forces. This reduces the forces tending to displace the track, reduces the tendency to overturn at high speed, and makes for a more comfortable ride for standing cattle and standing or seated passengers. This will be optimal at only one particular speed, however.

Track components

Railways are highly complex feats of engineering, with many hours of planning and forethought required for a successful outcome. The first component of a railway is the route, which is planned to provide the least resistance in terms of gradient and engineering works. As such, the track bed is heavily engineered to provide, where possible, a level surface. As such, embankments are constructed to support the track and to provide a compromise in terms of the route's average elevation. With this in mind, sundry structures such as bridges and viaducts are constructed in an attempt to maintain the railway's elevation, and gradients are kept within manageable constraints. Where such structures are not always justified, such as in hilly terrain where routes may require long detours to avoid such features, a cutting or tunnel is dug or bored through the obstacle. Once the sundry engineering works are completed, a bed of stone ( ballast) is laid over the compacted track bed to enhance drainage around the ties and evenly distribute pressure over a wider area, locking the track-work in place. Crushed stone is firmly tamped to prevent further settling and to lock the stones. Minor water courses are channeled through pipes ( culverts) before the grade is raised

The base of the trackage consists of treated wood or concrete " ties", also known as "sleepers". These ensure the proper distance between the rails (known as "gauge") and anchor the rail structure to the road bed through the use of plates. These are attached to the top of the ties to provide a secure housing for the rails. After placement of the rail atop the plate, spikes are driven through holes in the plate and into the tie where they are held by friction. The top of the spike has a head that clamps the rail. As an alternative, lag bolts can be used to retain the clamps, which is preferred since screws are less likely to loosen. The space between and surrounding the ties is filled with additional ballast to stabilize the rail assembly.

Points (Turnouts or Switches)

Points (UK) or switches (US), technically known as turnouts, are the means of directing a train onto a diverging section of track, for example, a siding, a branch line, or a parallel running line. Laid similar to normal track, a point typically consists of a frog (common crossing), check rails and two switch rails. The switch rails may be moved left or right, under the control of the signalling system, to determine which path the train will follow.

Maintenance

Spikes in wooden ties can loosen over time, while split and rotten ties may be individually replaced with a concrete substitute. Should the rails settle due to soil subsidence, they can be lifted by specialized machinery and additional ballast tamped down to form a level bed. Periodically, ballast must be removed and replaced with clean ballast to ensure adequate drainage, especially if wooden ties are used. Culverts and other passages for water must be kept clear lest water is impounded by the trackbed, causing landslips. Where trackbeds are placed along rivers, additional protection is usually placed to prevent erosion during times of high water, while bridges are another important item requiring inspection and maintenance.

Terminology

In the United Kingdom and most other Commonwealth of Nations countries, the term railway is used in preference to the United States term, railroad. In Canadian speech, railway and railroad are interchangeable, although in law railway is the usual term. Railroad was used in the United Kingdom concurrently with railway until the 1850s when railway became the established term. Several American companies have railway in their names instead of railroad, the BNSF Railway being the pre-eminent modern example.

In the United Kingdom, the term railway often refers to the whole organization of tracks, trains, stations, signalling, timetables and the operating companies that collectively make up a coordinated railway system, while permanent way or p/way refers to the tracks alone; however this terminology is generally not commonplace outside of the railway industry or those who take a keen interest in it.

Subways, metros, elevated lines, trolley lines, and undergrounds are all specialized railways.

Rail transport by country

Of 236 countries and dependencies, 143 have rail transport (including several with very little), of which about 90 have passenger services.
