Sodium hydroxide
2008/9 Schools Wikipedia Selection. Related subjects: Chemical compounds
| Sodium hydroxide | |
|---|---|
 |
|
 |
|
| IUPAC name | Sodium hydroxide |
| Other names | Lye, Caustic Soda |
| Identifiers | |
| CAS number | [1310-73-2] |
| Properties | |
| Molecular formula | NaOH |
| Molar mass | 39.9971 g/mol |
| Appearance | White solid |
| Density | 2.1 g/cm³, solid |
| Melting point |
318°C (591 K) |
| Boiling point |
1390°C (1663 K) |
| Solubility in water | 111 g/100 ml (20°C) |
| Basicity (pKb) | -2.43 |
| Hazards | |
| MSDS | External MSDS |
| NFPA 704 |
 0
3
1
|
| Flash point | Non-flammable. |
| Related compounds | |
| Related bases | Ammonia, lime. |
| Except where noted otherwise, data are given for materials in their standard state (at 25 °C, 100 kPa) Infobox disclaimer and references |
|
Sodium hydroxide (NaOH), also known as lye, caustic soda and (incorrectly, according to IUPAC nomenclature) sodium hydrate, is a caustic metallic base. Caustic soda forms a strong alkaline solution when dissolved in a solvent such as water. It is used in many industries, mostly as a strong chemical base in the manufacture of pulp and paper, textiles, drinking water, soaps and detergents and as a drain cleaner. Worldwide production in 1998 was around 45 million tonnes. Sodium hydroxide is the most used base in chemical laboratories.
Pure sodium hydroxide is a white solid; available in pellets, flakes, granules and as a 50% saturated solution. It is deliquescent and readily absorbs carbon dioxide from the air, so it should be stored in an airtight container. It is very soluble in water with liberation of heat. It also dissolves in ethanol and methanol, though it exhibits lower solubility in these solvents than potassium hydroxide. It is insoluble in ether and other non-polar solvents. A sodium hydroxide solution will leave a yellow stain on fabric and paper.
Physical properties
Δ H° dissolution for diluted aqueous -44.45 kJ / mol;
From aqueous solutions at 12.3-61.8°C, it crystallizes in monohydrate, with a melting point of 65.1 ° C and density of 1829 g/cm 3;
Δ H° form -734.96 kJ / mol;
Monohydrate from -28 to -24°C;
Heptahydrate from -24 to -17.7°C;
Pentahydrate from -17.7 to -5.4°C;
Tetrahydrate (α- changed), at -5 , 4 - 12.3°C Also know metastable β- NaOH 4* H2O. Which above 61.8°C are crystallized.
Chemical properties
Sodium hydroxide is completely ionic, containing sodium ions and hydroxide ions. The hydroxide ion makes sodium hydroxide a strong base which reacts with acids to form water and the corresponding salts, e.g., with hydrochloric acid, sodium chloride is formed:
In general such neutralization reactions are represented by one simple net ionic equation:
- OH−(aq) + H3O+(aq) → 2H2O
This type of reaction with a strong acid, releases heat, and hence is referred to as exothermic. Such acid-base reactions can also be used for titrations, which is a common method to determine the concentration of acids. Another type of reaction that sodium hydroxide is involved in is with acidic oxides. The reaction of carbon dioxide has already been mentioned, but other acidic oxides such as sulfur dioxide (SO2) also react completely. Such reactions are often used to "scrub" harmful acidic gases (like SO2 and H2S) and prevent their release into the atmosphere.
- 2NaOH + CO2 → Na2CO3 + H2O
Sodium hydroxide slowly reacts with glass to form sodium silicate, so glass joints and stopcocks exposed to NaOH have a tendency to "freeze". Flasks and glass-lined chemical reactors are damaged by long exposure to hot sodium hydroxide, and the glass becomes frosted. Sodium hydroxide does not attack iron or copper, but other metals such as aluminium, zinc and titanium are attacked rapidly. In 1986 an aluminium road tanker in the UK was mistakenly used to transport 25% sodium hydroxide solution, causing pressurisation of the contents and damage to the tanker. For this reason aluminium pans should never be cleaned with sodium hydroxide.
Many non-metals also react with sodium hydroxide, giving salts. For example phosphorus forms sodium hypophosphite, while silicon gives sodium silicate.
Unlike NaOH, the hydroxides of most metals are insoluble, and therefore sodium hydroxide can be used to precipitate metal hydroxides. One such hydroxide is aluminium hydroxide, used as a gelatinous floc to filter out particulate matter in water treatment. Aluminium hydroxide is prepared at the treatment plant from aluminium sulfate by reacting with NaOH:
- 6NaOH(aq) + Al2(SO4)3(aq) → 2 Al(OH)3(s) + 3Na2SO4(aq)

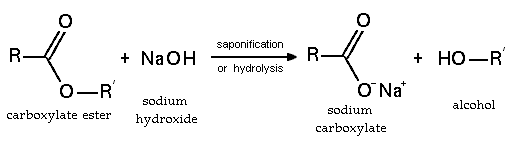

Sodium hydroxide reacts readily with carboxylic acids to form their salts and is even a strong enough base to form salts with phenols. NaOH can be used for the base-driven hydrolysis of esters (as in saponification), amides and alkyl halides. However, the limited solubility of NaOH in organic solvents means that the more soluble KOH is often preferred.
Manufacture
In 1998, total world production was around 45 million tonnes. North America and Asia collectively contributed around 14 million tonnes, while Europe produced around 10 million tonnes.
Methods of production
Sodium hydroxide is produced (along with chlorine and hydrogen) via the chloralkali process. This involves the electrolysis of an aqueous solution of sodium chloride. The sodium hydroxide builds up at the cathode, where water is reduced to hydrogen gas and hydroxide ion:
- 2Na+ + 2H2O + 2e− → H2 + 2NaOH
To produce NaOH it is necessary to prevent reaction of the NaOH with the chlorine. This is typically done in one of three ways, of which the membrane cell process is economically the most viable.
- Mercury cell process (also called the Castner-Kellner process) – Sodium ions are reduced to sodium metal, which forms an amalgam with a mercury cathode; this sodium is then reacted with water to produce NaOH. There have been concerns about mercury releases, although modern plants claim to be safe in this regard.
- Diaphragm cell process – uses a steel cathode, and the reaction of NaOH with Cl2 is prevented using a porous diaphragm, often made of asbestos fibers. In the diaphragm cell process the anode area is separated from the cathode area by a permeable diaphragm. The brine is introduced into the anode compartment and flows through the diaphragm into the cathode compartment. A diluted caustic brine leaves the cell. The caustic soda must usually be concentrated to 50% and the salt removed. This is done using an evaporative process with about three tonnes of steam per tonne of caustic soda. The salt separated from the caustic brine can be used to saturate diluted brine. The chlorine contains oxygen and is purified by liquefaction and evaporation.
- Membrane cell process – similar to the diaphragm cell process, with a Nafion membrane to separate the cathode and anode reactions. Only sodium ions and a little water pass through the membrane. It produces a higher quality of NaOH. Of the three processes, the membrane cell process requires the lowest consumption of electric energy and the amount of steam needed for concentration of the caustic is relatively small (less than one tonne per tonne of caustic soda).
An older method for sodium hydroxide production was the LeBlanc process, which produced sodium carbonate, followed by roasting to create carbon dioxide and sodium oxide. This method is still occasionally used. It helped establish sodium hydroxide as an important commodity chemical.
The LeBlanc process was superseded by the Solvay process in the late 19th century.
Major producers
In the United States, the major producer of sodium hydroxide is the Dow Chemical Company, which has annual production around 3.7 million tonnes from sites at Freeport, Texas, and Plaquemine, Louisiana. Other major US producers include Oxychem, PPG, Olin, Pioneer Companies, Inc. (PIONA), and Formosa. All of these companies use the chloralkali process.
Uses
General applications
Sodium hydroxide is the principal strong base used in the chemical industry. In bulk it is most often handled as an aqueous solution, since solutions are cheaper and easier to handle. It is used to drive chemical reactions and also for the neutralization of acidic materials. It can be used also as a neutralizing agent in petroleum refining. It is sometimes used as a cleaner.
Paint stripper
A solution of sodium hydroxide in water was traditionally used as the most common paint stripper on wooden objects. Due to its corrosiveness and the fact that it can damage the wood surface raising the grain and staining the colour, it's use has become less common.
Gold pennies
Sodium hydroxide has also been used in conjunction with zinc for creation of the famous "Gold pennies" experiment. When a penny is boiled in a solution of NaOH together with some granular zinc metal ( galvanized nails are one source), the colour of the penny will turn silver in about 45 seconds. The penny is then held in the flame of a burner for a few seconds and it turns golden. The reason this happens is that granular zinc dissolves in NaOH to form Zn(OH)42- (tetrahydroxozincate). This zincate ion becomes reduced to metallic zinc on the surface of a copper penny. Zinc and copper when heated in a flame form brass.
Alumina production - Bayer process
Sodium hydroxide is used in the refining of alumina containing ore ( bauxite) to produce alumina (aluminium oxide) which is the raw material used to produce aluminium metal via the smelting process.
Use in chemical analysis
In analytical chemistry, sodium hydroxide solutions are often used to measure the concentration of acids by titration. Since NaOH is not a primary standard, solutions must first be standardised by titration against a standard such as KHP. Burettes exposed to NaOH should be rinsed out immediately after use to prevent "freezing" of the stopcock. Sodium hydroxide was traditionally used to test for cations in Qualitative Inorganic Analysis, as well as to provide alkaline media for some reactions that need it, such as the Biuret test.
Soap production
Sodium hydroxide was traditionally used in soap making ( cold process soap, saponification). The Arabs began producing soap in this way in the 7th century, and the same basic process is used today.
Paper making
Sodium hydroxide was also widely used in making paper. Along with sodium sulfide, NaOH is a key component of the white liquor solution used to separate lignin from cellulose fibers in the Kraft process. It also plays a key role in several later stages of the process of bleaching the brown pulp resulting from the pulping process. These stages include oxygen delignification, oxidative extraction, and simple extraction, all of which require a strong alkaline environment with a pH > 10.5 at the end of the stages.
Biodiesel
For the manufacture of biodiesel, sodium hydroxide is used as a catalyst for the transesterification of methanol and triglycerides. This only works with anhydrous sodium hydroxide, because water and lye would turn the fat into soap which would be tainted with methanol. It is used more often than potassium hydroxide because it is cheaper and a smaller quantity is needed.
Aluminium etching
Strong bases attack aluminium. This can be useful in etching through a resist or in converting a polished surface to a satin-like finish, but without further passivation such as anodizing or allodizing the surface may become corroded, either under normal use or in severe atmospheric conditions.
Food preparation
Food uses of lye include washing or chemical peeling of fruits and vegetables, chocolate and cocoa processing, caramel colour production, poultry scalding, soft drink processing, and thickening ice cream. Olives are often soaked in lye to soften them, while pretzels and German lye rolls are glazed with a lye solution before baking to make them crisp. Due to the difficulty in obtaining food grade lye in small quantities for home use, sodium carbonate is often used in place of sodium hydroxide.
Specific foods processed with lye include:
- The Scandinavian delicacy known as lutefisk (from lutfisk, "lye fish").
- Hominy is dried maize (corn) kernels reconstituted by soaking in lye-water. These expand considerably in size and may be further processed by frying to make corn nuts or by drying and grinding to make grits. Nixtamal is similar, but uses calcium hydroxide instead of sodium hydroxide.
- Sodium hydroxide is also the chemical that causes gelling of egg whites in the production of Century eggs.
- German pretzels are poached in a boiling sodium hydroxide solution before baking, which contributes to their unique crust.
- Most yellow coloured Chinese noodles are made with lye-water but are commonly mistaken for containing egg
Domestic uses
Sodium hydroxide is used in the home as a drain cleaning agent for clearing clogged drains. It is distributed as a dry crystal or as a thick liquid gel. The chemical mechanism employed is the conversion of grease to a form of soap. Soap is water-soluble, and can be dissolved by flushing with water. Sodium hydroxide also decomposes complex molecules such as the protein that composes hair. Such drain cleaners (and their acidic versions) are highly caustic and should be handled with care.
Lye has been used as a relaxer to straighten hair. However, because of the high incidence and intensity of chemical burns, chemical relaxer manufacturers have now switched to other alkaline chemicals, although lye relaxers are still available, used mostly by professionals.
Tissue Digestion
This is a process that was used with farm animals at one time. This process involves the placing of a carcass into a sealed chamber, which then puts the carcass in a mixture of lye and water, which breaks chemical bonds keeping the body intact. This eventually turns the body into a coffee-like liquid, and the only solid remains are bone hulls, which could be crushed between one's fingertips. It is also of note that sodium hydroxide is frequently used in the process of decomposing roadkill dumped in landfills by animal disposal contractors.
Sodium hydroxide has also been used by criminals and serial killers to dispose of their victims' bodies.
Illegal drugs
Sodium hydroxide is a key reagent in the process of making Methamphetamine and other illegal drugs. Contrary to popular media reports, it is not actually an "ingredient" in these drugs, but simply a strong base used to manipulate the pH at various points in a chemical synthesis.
It can also be used to convert GBL into GHB.
Cleansing agent
Sodium hydroxide is frequently used as a cleaner in breweries, where it is simply called "caustic". It is added to water, heated, and then used to clean the large stainless steel tanks where beer is brewed, fermented, and stored. It can dissolve oils and protein-based deposits.
Safety
Solid sodium hydroxide or solutions containing high concentrations of sodium hydroxide may cause chemical burns, permanent injury or scarring, and blindness.
Dissolution of sodium hydroxide is highly exothermic, and the resulting heat may cause heat burns or ignite flammables.
The combination of aluminium and sodium hydroxide results in a large production of hydrogen gas:
2Al( s) + 6NaOH(aq) → 3H2(g) + 2Na3AlO3(aq).
Mixing these two in a closed container is therefore dangerous.
