Supernova

2008/9 Schools Wikipedia Selection. Related subjects: Physics

Multiwavelength X-ray, infrared, and optical compilation image of Kepler's Supernova Remnant, SN 1604. ( Chandra X-ray Observatory)

A supernova (plural: supernovae or supernovas) is a stellar explosion that creates an extremely luminous object. A supernova causes a burst of radiation that may briefly outshine its entire host galaxy before fading from view over several weeks or months. During this short interval, a supernova can radiate as much energy as the Sun would emit over 10 billion years. The explosion expels much or all of a star's material at a velocity of up to a tenth the speed of light, driving a shock wave into the surrounding interstellar medium. This shock wave sweeps up an expanding shell of gas and dust called a supernova remnant.

Several types of supernovae exist that may be triggered in one of two ways, involving either turning off or suddenly turning on the production of energy through nuclear fusion. After the core of an aging massive star ceases to generate energy from nuclear fusion, it may undergo sudden gravitational collapse into a neutron star or black hole, releasing gravitational potential energy that heats and expels the star's outer layers. Alternatively, a white dwarf star may accumulate sufficient material from a stellar companion (usually through accretion, rarely via a merger) to raise its core temperature enough to ignite carbon fusion, at which point it undergoes runaway nuclear fusion, completely disrupting it. Stellar cores whose furnaces have permanently gone out collapse when their masses exceed the Chandrasekhar limit, while accreting white dwarfs ignite as they approach this limit (roughly 1.38 times the mass of the Sun). White dwarfs are also subject to a different, much smaller type of thermonuclear explosion fueled by hydrogen on their surfaces called a nova. Solitary stars with a mass below approximately nine solar masses, such as the Sun itself, evolve into white dwarfs without ever becoming supernovae.

On average, supernovae occur about once every 50 years in a galaxy the size of the Milky Way and play a significant role in enriching the interstellar medium with heavy elements. Furthermore, the expanding shock waves from supernova explosions can trigger the formation of new stars.

Nova (plural novae) means "new" in Latin, referring to what appears to be a very bright new star shining in the celestial sphere; the prefix "super-" distinguishes supernovae from ordinary novae, which also involve a star increasing in brightness, though to a lesser extent and through a different mechanism. According to Merriam-Webster's Collegiate Dictionary, the word supernova was first used in print in 1926.

Observation history

The Crab Nebula is a pulsar wind nebula associated with the 1054 supernova.

The earliest recorded supernova, SN 185, was viewed by Chinese astronomers in 185 CE. The widely observed supernova of SN 1054 produced the Crab Nebula. Supernovae SN 1572 and SN 1604, the last to be observed in the Milky Way galaxy, had notable effects on the development of astronomy in Europe because they were used to argue against the Aristotelian idea that the world beyond the Moon and planets was immutable.

Since the development of the telescope, the field of supernova discovery has enlarged to other galaxies, starting with the 1885 observation of supernova S Andromedae in the Andromeda galaxy. Supernovae provide important information on cosmological distances. During the twentieth century, successful models for each type of supernova were developed, and scientists' comprehension of the role of supernovae in the star formation process is growing.

Some of the most distant supernovae recently observed appeared dimmer than expected. This has provided evidence that the expansion of the universe may be accelerating.

Discovery

Because supernovae are relatively rare events, occurring about once every 50 years in a galaxy like the Milky Way, many galaxies must be monitored regularly in order to obtain a good sample of supernovae to study.

Supernovae in other galaxies cannot be predicted with any meaningful accuracy. When they are discovered, they are already in progress. Most scientific interest in supernovae—as standard candles for measuring distance, for example—require an observation of their peak luminosity. It is therefore important to discover them well before they reach their maximum. Amateur astronomers, who greatly outnumber professional astronomers, have played an important role in finding supernovae, typically by looking at some of the closer galaxies through an optical telescope and comparing them to earlier photographs.

Towards the end of the 20th century, astronomers increasingly turned to computer-controlled telescopes and CCDs for hunting supernovae. While such systems are popular with amateurs, there are also larger installations like the Katzman Automatic Imaging Telescope. Recently, the Supernova Early Warning System (SNEWS) project has also begun using a network of neutrino detectors to give early warning of a supernova in the Milky Way galaxy. A neutrino is a particle that is produced in great quantities by a supernova explosion, and it is not obscured by the interstellar gas and dust of the galactic disk.

Supernova searches fall into two classes: those focused on relatively nearby events and those looking for explosions farther away. Because of the expansion of the universe, the distance to a remote object with a known emission spectrum can be estimated by measuring its Doppler shift (or redshift); on average, more distant objects recede with greater velocity than those nearby, and so have a higher redshift. Thus the search is split between high redshift and low redshift, with the boundary falling around a redshift range of z = 0.1–0.3—where z is a dimensionless measure of the spectrum's frequency shift.

High redshift searches for supernovae usually involve the observation of supernova light curves. These are useful for standard or calibrated candles to generate Hubble diagrams and make cosmological predictions. At low redshift, supernova spectroscopy is more practical than at high redshift, and this is used to study the physics and environments of supernovae. Low redshift observations also anchor the low distance end of the Hubble curve, which is a plot of distance versus redshift for visible galaxies.

Naming convention

SN 1994D in the NGC 4526 galaxy (bright spot on the lower left). Image by NASA, ESA, The Hubble Key Project Team, and The High-Z Supernova Search Team

Supernova discoveries are reported to the International Astronomical Union's Central Bureau for Astronomical Telegrams, which sends out a circular with the name it assigns to it. The name is formed by the year of discovery, immediately followed by a one or two-letter designation. The first 26 supernovae of the year get designated with an upper case letter from A to Z. Afterward, pairs of lower-case letters are used, starting with aa, ab, and so on. Professional and amateur astronomers find several hundred supernovae per year (in recent years: 367 in 2005, 551 in 2006, and 572 in 2007). For example, the last supernova of 2005 was SN 2005nc, indicating that it was the 367th supernova found in 2005.

Historical supernovae are known simply by the year they occurred: SN 185, SN 1006, SN 1054, SN 1572 (Tycho's Nova), and SN 1604 (Kepler's Star). Beginning in 1885, the letter notation is used, even if there was only one supernova discovered that year (e.g. SN 1885A, 1907A, etc.)—this last happened with SN 1947A. The standard abbreviation "SN" is an optional prefix.

Classification

As part of the attempt to understand supernovae, astronomers have classified them according to the absorption lines of different chemical elements that appear in their spectra. The first element for a division is the presence or absence of a line caused by hydrogen. If a supernova's spectrum contains a line of hydrogen (known as the Balmer series in the visual portion of the spectrum) it is classified Type II; otherwise it is Type I. Among those types, there are subdivisions according to the presence of lines from other elements and the shape of the light curve (a graph of the supernova's apparent magnitude versus time).

The supernovae of Type II can also be sub-divided based on their spectra. While most Type II supernova show very broad emission lines which indicate expansion velocities of many thousands of kilometres per second, some have relatively narrow features. These are called Type IIn, where the "n" stands for "narrow".

A few supernovae, such as SN 1987K and SN 1993J, appear to change types: they show lines of hydrogen at early times, but, over a period of weeks to months, become dominated by lines of helium. The term "Type IIb" is used to describe the combination of features normally associated with Types II and Ib.

Current models

Type Ia

There are several means by which a supernova of this type can form, but they share a common underlying mechanism. If a carbon-oxygen white dwarf accreted enough matter to reach the Chandrasekhar limit of about 1.38  solar masses (for a non-rotating star), it would no longer be able to support the bulk of its plasma through electron degeneracy pressure and would begin to collapse. However, the current view is that this limit is not normally attained; increasing temperature and density inside the core ignite carbon fusion as the star approaches the limit (to within about 1%), before collapse is initiated. Within a few seconds, a substantial fraction of the matter in the white dwarf undergoes nuclear fusion, releasing enough energy (1–2 × 10⁴⁴  joules) to unbind the star in a supernova explosion. An outwardly expanding shock wave is generated, with matter reaching velocities on the order of 5,000–20,000 km/s, or roughly 3% of the speed of light. There is also a significant increase in luminosity, reaching an absolute magnitude of -19.3 (or 5 billion times brighter than the Sun), with little variation.

One model for the formation of this category of supernova is a close binary star system. The larger of the two stars is the first to evolve off the main sequence, and it expands to form a red giant. The two stars now share a common envelope, causing their mutual orbit to shrink. The giant star then sheds most of its envelope, losing mass until it can no longer continue nuclear fusion. At this point it becomes a white dwarf star, composed primarily of carbon and oxygen. Eventually the secondary star also evolves off the main sequence to form a red giant. Matter from the giant is accreted by the white dwarf, causing the latter to increase in mass.

Another model for the formation of a Type Ia explosion involves the merger of two white dwarf stars, with the combined mass momentarily exceeding the Chandrasekhar limit. A white dwarf could also accrete matter from other types of companions, including a main sequence star (if the orbit is sufficiently close).

Type Ia supernovae follow a characteristic light curve—the graph of luminosity as a function of time—after the explosion. This luminosity is generated by the radioactive decay of nickel-56 through cobalt-56 to iron-56. The peak luminosity of the light curve was believed to be consistent across Type Ia supernovae (the vast majority of which are initiated with a uniform mass via the accretion mechanism), allowing them to be used as a secondary standard candle to measure the distance to their host galaxies. However, recent discoveries reveal that they may not in fact be standard candles, and have a theoretical variation up to 250%, with a natural observed variation of 12% or more.

Type Ib and Ic

These events, like supernovae of Type II, are probably massive stars running out of fuel at their centers; however, the progenitors of Types Ib and Ic have lost most of their outer (hydrogen) envelopes due to strong stellar winds or else from interaction with a companion. Type Ib supernovae are thought to be the result of the collapse of a massive Wolf-Rayet star. There is some evidence that a few percent of the Type Ic supernovae may be the progenitors of gamma ray bursts (GRB), though it is also believed that any hydrogen-stripped, Type Ib or Ic supernova could be a GRB, dependent upon the geometry of the explosion.

Type II

The onion-like layers of a massive, evolved star just prior to core collapse. (Not to scale.)

Stars with at least nine solar masses of material evolve in a complex fashion. In the core of the star, hydrogen is fused into helium and the thermal energy released creates an outward pressure, which maintains the core in hydrostatic equilibrium and prevents collapse.

When the core's supply of hydrogen is exhausted, this outward pressure is no longer created. The core begins to collapse, causing a rise in temperature and pressure which becomes great enough to ignite the helium and start a helium-to-carbon fusion cycle, creating sufficient outward pressure to halt the collapse. The core expands and cools slightly, with a hydrogen-fusion outer layer, and a hotter, higher pressure, helium-fusion centre. (Other elements such as magnesium, sulfur and calcium are also created and in some cases burned in these further reactions.)

This process repeats several times, and each time the core collapses and the collapse is halted by the ignition of a further process involving more massive nuclei and higher temperatures and pressures. Each layer is prevented from collapse by the heat and outward pressure of the fusion process in the next layer inward; each layer also burns hotter and quicker than the previous one – the final burn of silicon to nickel consumes its fuel in around one day, or a few days. The star becomes layered like an onion, with the burning of more easily fused elements occurring in larger shells.

In the later stages, increasingly heavier elements undergo nuclear fusion, and the binding energy of the relevant nuclei increases. Fusion produces progressively lower levels of energy, and also at higher core energies photodisintegration and electron capture occur which cause energy loss in the core and a general acceleration of the fusion processes to maintain equilibrium. This escalation culminates with the production of nickel-56, which is unable to produce energy through fusion (but does produce iron-56 through radioactive decay). As a result, a nickel-iron core builds up that cannot produce any further outward pressure on a scale needed to support the rest of the structure. It can only support the overlaying mass of the star through the degeneracy pressure of electrons in the core. If the star is sufficiently large, then the iron-nickel core will eventually exceed the Chandrasekhar limit (1.38 solar masses), at which point this mechanism catastrophically fails. The forces holding atomic nuclei apart in the innermost layer of the core suddenly give way, the core implodes due to its own mass, and no further fusion process can ignite or prevent collapse this time.

Core collapse

The core collapses in on itself with velocities reaching 70,000 km/s (0.23c), resulting in a rapid increase in temperature and density. The energy loss processes operating in the core cease to be in equilibrium. Through photodisintegration, gamma rays decompose iron into helium nuclei and free neutrons, absorbing energy, whilst electrons and protons merge via electron capture, producing neutrons and electron neutrinos which escape.

In a typical Type II supernova, the newly formed neutron core has an initial temperature of about 100 billion kelvins (100 GK); 6000 times the temperature of the sun's core. Much of this thermal energy must be shed for a stable neutron star to form (otherwise the neutrons would "boil away"), and this is accomplished by a further release of neutrinos. These 'thermal' neutrinos form as neutrino-antineutrino pairs of all flavours, and total several times the number of electron-capture neutrinos. About 10⁴⁶ joules of gravitational energy—about 10% of the star's rest mass—is converted into a ten-second burst of neutrinos; the main output of the event. These carry away energy from the core and accelerate the collapse, while some neutrinos are absorbed by the star's outer layers and begin the supernova explosion.

The inner core eventually reaches typically 30 km diameter, and a density comparable to that of an atomic nucleus, and further collapse is abruptly stopped by strong force interactions and by degeneracy pressure of neutrons. The infalling matter, suddenly halted, rebounds, producing a shock wave that propagates outward. Computer simulations indicate that this expanding shock does not directly cause the supernova explosion; rather, it stalls within milliseconds in the outer core as energy is lost through the dissociation of heavy elements, and a process that is not clearly understood is necessary to allow the outer layers of the core to reabsorb around 10⁴⁴ joules (1  foe) of energy, producing the visible explosion. Current research focuses upon rotational and magnetic effects as the basis for this process.

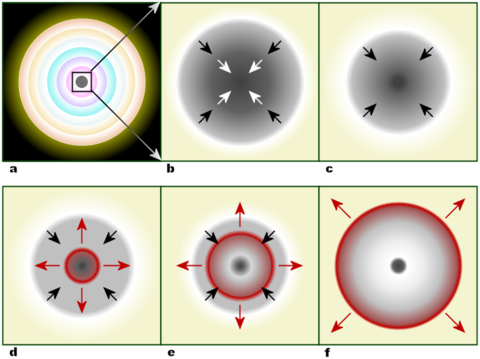

Within a massive, evolved star (a) the onion-layered shells of elements undergo fusion, forming an iron core (b) that reaches Chandrasekhar-mass and starts to collapse. The inner part of the core is compressed into neutrons (c), causing infalling material to bounce (d) and form an outward-propagating shock front (red). The shock starts to stall (e), but it is re-invigorated by neutrino interaction. The surrounding material is blasted away (f), leaving only a degenerate remnant.

When the progenitor star is below about 20  solar masses (depending on the strength of the explosion and the amount of material that falls back), the degenerate remnant of a core collapse is a neutron star. Above this mass the remnant collapses to form a black hole. (This type of collapse is one of many candidate explanations for gamma ray bursts—producing a large burst of gamma rays through a still theoretical hypernova explosion.) The theoretical limiting mass for this type of core collapse scenario was estimated around 40–50 solar masses.

Above 50 solar masses, stars were believed to collapse directly into a black hole without forming a supernova explosion, although uncertainties in models of supernova collapse make accurate calculation of these limits difficult. In fact recent evidence has shown stars in the range of about 140–250 solar masses, with a relatively low proportion of elements more massive than helium, may be capable of forming pair-instability supernovae without leaving behind a black hole remnant. This rare type of supernova is formed by an alternate mechanism (partially analogous to that of Type Ia explosions) that does not require an iron core. An example is the Type II supernova SN 2006gy, with an estimated 150 solar masses, that demonstrated the explosion of such a massive star differed fundamentally from previous theoretical predictions.

Light curves and unusual spectra

This graph of the luminosity (relative to the Sun) as a function of time shows the characteristic shapes of the light curves for a Type II-L and II-P supernova.

The light curves for Type II supernovae are distinguished by the presence of hydrogen Balmer absorption lines in the spectra. These light curves have an average decay rate of 0.008  magnitudes per day; much lower than the decay rate for Type I supernovae. Type II are sub-divided into two classes, depending on whether there is a plateau in their light curve (Type II-P) or a linear decay rate (Type II-L). The net decay rate is higher at 0.012 magnitudes per day for Type II-L compared to 0.0075 magnitudes per day for Type II-P. The difference in the shape of the light curves is believed to be caused, in the case of Type II-L supernovae, by the expulsion of most of the hydrogen envelope of the progenitor star.

The plateau phase in Type II-P supernovae is due to a change in the opacity of the exterior layer. The shock wave ionizes the hydrogen in the outer envelope, which greatly increases the opacity. This prevents photons from the inner parts of the explosion from escaping. Once the hydrogen cools sufficiently to recombine, the outer layer becomes transparent.

Of the Type II supernovae with unusual features in their spectra, Type IIn supernovae may be produced by the interaction of the ejecta with circumstellar material. Type IIb supernovae are likely massive stars which have lost most, but not all, of their hydrogen envelopes through tidal stripping by a companion star. As the ejecta of a Type IIb expands, the hydrogen layer quickly becomes optically thin and reveals the deeper layers.

Asymmetry

A long-standing puzzle surrounding supernovae has been a need to explain why the compact object remaining after the explosion is given a large velocity away from the core. ( Neutron stars are observed, as pulsars, to have high velocities; black holes presumably do as well, but are far harder to observe in isolation.) This kick can be substantial, propelling an object of more than a solar mass at a velocity of 500 km/s or greater. This displacement is believed to be caused by an asymmetry in the explosion, but the mechanism by which this momentum is transferred to the compact object has remained a puzzle. Some explanations for this kick include convection in the collapsing star and jet production during neutron star formation.

This composite image shows X-ray (blue) and optical (red) radiation from the Crab Nebula's core region. A pulsar near the centre is propelling particles to almost the speed of light. This neutron star is travelling at an estimated 375 km/s. NASA/CXC/HST/ASU/J. Hester et al. image credit.

One explanation for the asymmetry in the explosion is large-scale convection above the core. The convection can create variations in the local abundances of elements, resulting in uneven nuclear burning during the collapse, bounce and resulting explosion.

Another explanation is that accretion of gas onto the central neutron star can create a disk that drives highly directional jets, propelling matter at a high velocity out of the star, and driving transverse shocks that completely disrupt the star. These jets might play a crucial role in the resulting supernova explosion. (A similar model is now favored for explaining long gamma ray bursts.)

Initial asymmetries have also been confirmed in Type Ia supernova explosions through observation. This result may mean that the initial luminosity of this type of supernova may depend on the viewing angle. However, the explosion becomes more symmetrical with the passage of time. Early asymmetries are detectable by measuring the polarization of the emitted light.

Type Ia vis-à-vis core collapse

Because they have a similar functional model, Types Ib, Ic and various Types II supernovae are collectively called Core Collapse supernovae. A fundamental difference between Type Ia and Core Collapse supernovae is the source of energy for the radiation emitted near the peak of the light curve. The progenitors of Core Collapse supernovae are stars with extended envelopes that can attain a degree of transparency with a relatively small amount of expansion. Most of the energy powering the emission at peak light is derived from the shock wave that heats and ejects the envelope.

The progenitors of Type Ia supernovae, on the other hand, are compact objects, much smaller (but more massive) than the Sun, that must expand (and therefore cool) enormously before becoming transparent. Heat from the explosion is dissipated in the expansion and is not available for light production. The radiation emitted by Type Ia supernovae is thus entirely attributable to the decay of radionuclides produced in the explosion; principally nickel-56 (with a half-life of 6.1 days) and its daughter cobalt-56 (with a half-life of 77 days). Gamma rays emitted during this nuclear decay are absorbed by the ejected material, heating it to incandescence.

As the material ejected by a Core Collapse supernova expands and cools, radioactive decay eventually takes over as the main energy source for light emission in this case also. A bright Type Ia supernova may expel 0.5–1.0  solar masses of nickel-56, while a Core Collapse supernova probably ejects closer to 0.1 solar mass of nickel-56.

Interstellar impact

Role in stellar evolution

The remnant of a supernova explosion consists of a compact object and a rapidly expanding shock wave of material. This cloud of material sweeps up the surrounding interstellar medium during a free expansion phase, which can last for up to two centuries. The wave then gradually undergoes a period of adiabatic expansion, and will slowly cool and mix with the surrounding interstellar medium over a period of about 10,000 years.

In standard astronomy, the Big Bang produced hydrogen, helium, and traces of lithium, while all heavier elements are synthesized in stars and supernovae. Supernovae tend to enrich the surrounding interstellar medium with metals, which for astronomers means all of the elements other than hydrogen and helium and is a different definition than that used in chemistry.

Supernova remnant N 63A lies within a clumpy region of gas and dust in the Large Magellanic Cloud. NASA image.

These injected elements ultimately enrich the molecular clouds that are the sites of star formation. Thus, each stellar generation has a slightly different composition, going from an almost pure mixture of hydrogen and helium to a more metal-rich composition. Supernovae are the dominant mechanism for distributing these heavier elements, which are formed in a star during its period of nuclear fusion, throughout space. The different abundances of elements in the material that forms a star have important influences on the star's life, and may decisively influence the possibility of having planets orbiting it.

The kinetic energy of an expanding supernova remnant can trigger star formation due to compression of nearby, dense molecular clouds in space. The increase in turbulent pressure can also prevent star formation if the cloud is unable to lose the excess energy.

Evidence from daughter products of short-lived radioactive isotopes shows that a nearby supernova helped determine the composition of the Solar System 4.5 billion years ago, and may even have triggered the formation of this system. Supernova production of heavy elements over astronomic periods of time ultimately made the chemistry of life on Earth possible.

Impact on Earth

A near-Earth supernova is an explosion resulting from the death of a star that occurs close enough to the Earth (roughly fewer than 100  light-years away) to have noticeable effects on its biosphere. Gamma rays are responsible for most of the adverse effects a supernova can have on a living terrestrial planet. In Earth's case, gamma rays induce a chemical reaction in the upper atmosphere, converting molecular nitrogen into nitrogen oxides, depleting the ozone layer enough to expose the surface to harmful solar and cosmic radiation. The gamma ray burst from a nearby supernova explosion has been proposed as the cause of the end Ordovician extinction, which resulted in the death of nearly 60% of the oceanic life on Earth.

Speculation as to the effects of a nearby supernova on Earth often focuses on large stars as Type II supernova candidates. Several prominent stars within a few hundred light years from the Sun are candidates for becoming supernovae in as little as a millennium. One example is Betelgeuse, a red supergiant 427 light-years from Earth. Though spectacular, these "predictable" supernovae are thought to have little potential to affect Earth.

Recent estimates predict that a Type II supernova would have to be closer than eight parsecs (26 light-years) to destroy half of the Earth's ozone layer. Such estimates are mostly concerned with atmospheric modeling and considered only the known radiation flux from SN 1987A, a Type II supernova in the Large Magellanic Cloud. Estimates of the rate of supernova occurrence within 10 parsecs of the Earth vary from once every 100 million years to once every one to ten billion years.

Type Ia supernovae are thought to be potentially the most dangerous if they occur close enough to the Earth. Because Type Ia supernovae arise from dim, common white dwarf stars, it is likely that a supernova that could affect the Earth will occur unpredictably and take place in a star system that is not well studied. One theory suggests that a Type Ia supernova would have to be closer than a thousand parsecs (3300 light-years) to affect the Earth. The closest known candidate is IK Pegasi (see below).

In 1996, astronomers at the University of Illinois at Urbana-Champaign theorized that traces of past supernovae might be detectable on Earth in the form of metal isotope signatures in rock strata. Subsequently, iron-60 enrichment has been reported in deep-sea rock of the Pacific Ocean by researchers from the Technical University of Munich.

Milky Way candidates

The nebula around Wolf-Rayet star WR124, which is located at a distance of about 21,000 light years. NASA image.

Several large stars within the Milky Way have been suggested as possible supernovae within the next few thousand to hundred million years. These include Rho Cassiopeiae, Eta Carinae, RS Ophiuchi, the Kitt Peak Downes star KPD1930+2752, HD 179821, IRC+10420, VY Canis Majoris, Betelgeuse, Antares, and Spica.

Many Wolf-Rayet stars, such as Gamma Velorum, WR 104, and those in the Quintuplet Cluster, are also considered possible precursor stars to a supernova explosion in the 'near' future.

The nearest supernova candidate is IK Pegasi (HR 8210), located at a distance of only 150 light-years. This closely-orbiting binary star system consists of a main sequence star and a white dwarf, separated by only 31 million  km. The dwarf has an estimated mass equal to 1.15 times that of the Sun. It is thought that several million years will pass before the white dwarf can accrete the critical mass required to become a Type Ia supernova.
