Description

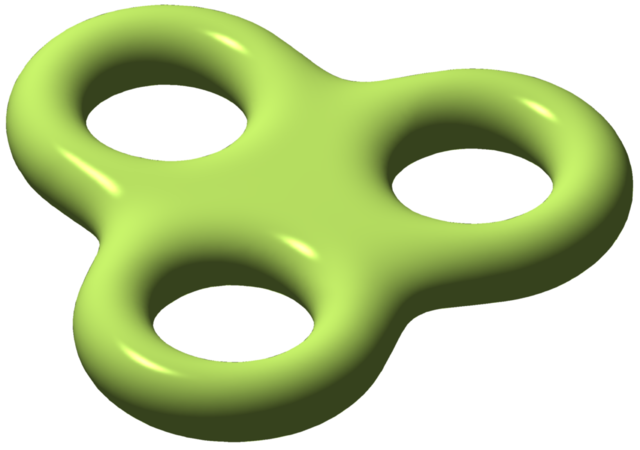

Illustration of a triple torus

Source

self-made with MATLAB, source code below

Date

18:01, 7 September 2007 (UTC)

Author

Oleg Alexandrov

Permission
( Reusing this image)

see below


Public domain
I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.


Afrikaans | Alemannisch | Aragonés | العربية | Asturianu | Български | Català | Cebuano | Česky | Cymraeg | Dansk | Deutsch | Eʋegbe | Ελληνικά | English | Español | Esperanto | Euskara | Estremeñu | فارسی | Français | Galego | 한국어 | हिन्दी | Hrvatski | Ido | Bahasa Indonesia | Íslenska | Italiano | עברית | Kurdî / كوردی | Latina | Lietuvių | Latviešu | Magyar | Македонски | Bahasa Melayu | Nederlands | ‪Norsk (bokmål)‬ | ‪Norsk (nynorsk)‬ | 日本語 | Polski | Português | Ripoarisch | Română | Русский | Shqip | Slovenčina | Slovenščina | Српски / Srpski | Suomi | Svenska | ไทย | Tagalog | Türkçe | Українська | Tiếng Việt | Walon | ‪中文(简体)‬ | ‪中文(繁體)‬ | zh-yue-hant | +/-

MATLAB source code

function main()

  % illustration of a triple torus

   % torus radii
   r = 1;
   R = 3;

   Kb = R+r;
   Ks = R-r;

   % Km controls the smoothness of the transition from one ring to the others
   Km = 0.5125*Kb;

   L = 2.5*(r+R);

   h = 0.2; % grid size

   X = (-L):h:L; m = length(X);
   Y = (-L):h:L; n = length(Y);
   Z = (-1.1*r):h:(1.1*r); k = length(Z);

   W = zeros(m, n, k);

   for i=1:length(X)
      for j=1:length(Y)
         x = X(i);
         y = Y(j);

         [x, y] = triple_torus_function (x, y, r, R, Kb, Km);
         val = (sqrt(x^2+y^2)-R)^2-r^2;
         W(i, j, :) = val + Z.^2;

      end
   end

   figure(1); clf; hold on;
   axis equal; axis off;

   light_green=[184, 224, 98]/256; % light green

   H = patch(isosurface(X, Y, Z, W, 0));
   isonormals(X, Y, Z, W, H);
   mycolor = light_green;

   set(H, 'FaceColor', mycolor, 'EdgeColor','none', 'FaceAlpha', 1);
   set(H, 'SpecularColorReflectance', 0.1, 'DiffuseStrength', 0.8);
   set(H, 'FaceLighting', 'phong', 'AmbientStrength', 0.3);
   set(H, 'SpecularExponent', 108);

   daspect([1 1 1]);
   axis tight;
   colormap(prism(28))
   view(-12, 40);

   % add in a source of light
   camlight (-50, 54); lighting phong;

   print('-dpng', '-r400',  ...
         sprintf('Triple_torus_illustration.png'));


function [x, y] = triple_torus_function (x, y, r, R, Kb, Km)

% a deformation in the plane, which, when comosed with a torus will give
% a triple torus

% centre of one of the torii
   O = [-Kb, -Kb/sqrt(3)];

   angle = 2*pi/3;
   Mat = [ cos(angle)  -sin(angle); sin(angle)   cos(angle)  ];

   p =[x, y]';
   phi = atan2(y, x);

   if phi >= pi/6 & phi <= 5*pi/6
      p = Mat*p; % rotate 120 degree counterclockwise
   elseif phi >= -pi/2 & phi < pi/6
      p = Mat*p; p = Mat*p; % rotate 240 degrees counterclockwise
   end

   x=p(1); y = p(2);

% reflect against a line, to merge two cases in one
   if y > x/sqrt(3)

      p = [x, y];
      v = [cos(2*pi/3), sin(2*pi/3)];

      p = p - 2*v*dot(p, v)/dot(v, v);
      x = p(1); y = p(2);

   end

   if x > O(1)

% project to the y axis, to a point B
      if y < O(2)

         A = [O(1), y];
         B = [0, y];
      else

         A = O;

         p = [x, y];
         rho = norm(p-O);

         B = O+(Kb/rho)*(p-O);

%         t = -O(1)/(x-O(1));
%         B = [0, O(2)+t*(y-O(2))];

      end

      p = [x, y];

      d=norm(p-A);
      q = norm(B-A);

      d = my_map(d, q, Km);
      p = (d/q)*B+(1-d/q)*A;
      x=p(1); y=p(2);

   end

% shift towards the origin
   x = x-O(1);
   y = y-O(2);

function y = my_map(x, Kb, Km)

   if x > Kb
      y = Km + 1;
   elseif x < Km
      y = x;
   else
      y = Km+sin((pi/2)*(x-Km)/(Kb-Km));
   end
