Natural ultramarine pigment in powdered form.

Synthetic ultramarine pigment is chemically identical to natural ultramarine.

A pigment is a material that changes the colour of light it reflects as the result of selective colour absorption. This physical process differs from fluorescence, phosphorescence, and other forms of luminescence, in which the material itself emits light. Many materials selectively absorb certain wavelengths of light. Materials that humans have chosen and developed for use as pigments usually have special properties that make them ideal for coloring other materials. A pigment must have a high tinting strength relative to the materials it colors. It must be stable in solid form at ambient temperatures.

For industrial applications, as well as in the arts, permanence and stability are desirable properties. Pigments that are not permanent are called fugitive. Fugitive pigments fade over time, or with exposure to light, while some eventually blacken.

Pigments are used for coloring paint, ink, plastic, fabric, cosmetics, food and other materials. Most pigments used in manufacturing and the visual arts are dry colourants, usually ground into a fine powder. This powder is added to a vehicle (or matrix), a relatively neutral or colorless material that acts as a binder.

A distinction is usually made between a pigment, which is insoluble in the vehicle (resulting in a suspension), and a dye, which either is itself a liquid or is soluble in its vehicle (resulting in a solution). A colorant can be both a pigment and a dye depending on the vehicle it is used in. In some cases, a pigment can be manufactured from a dye by precipitating a soluble dye with a metallic salt. The resulting pigment is called a lake pigment.

Physical basis

A wide variety of wavelengths (colors) encounter a pigment. This pigment absorbs red and green light, but reflects blue, creating the colour blue.

Pigments appear the colors they are because they selectively reflect and absorb certain wavelengths of light. White light is a roughly equal mixture of the entire visible spectrum of light. When this light encounters a pigment, some wavelengths are absorbed by the chemical bonds and substituents of the pigment, and others are reflected. This new reflected light spectrum creates the appearance of a colour. Ultramarine reflects blue light, and absorbs other colors. Pigments, unlike fluorescent or phosphorescent substances, can only subtract wavelengths from the source light, never add new ones.

The appearance of pigments is intimately connected to the colour of the source light. Sunlight has a high colour temperature, and a fairly uniform spectrum, and is considered a standard for white light. Artificial light sources tend to have great peaks in some parts of their spectrum, and deep valleys in others. Viewed under these conditions, pigments will appear different colors.

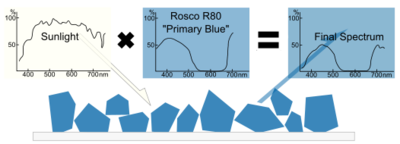

Sunlight encounters Rosco R80 "Primary Blue" pigment. The product of the source spectrum and the reflectance spectrum of the pigment results in the final spectrum, and the appearance of blue.

Colour spaces used to represent colors numerically must specify their light source. Lab colour measurements, unless otherwise noted, assume that the measurement was taken under a D65 light source, or "Daylight 6500 K", which is roughly the colour temperature of sunlight.

Other properties of a color, such as its saturation or lightness, may be determined by the other substances that accompany pigments. Binders and fillers added to pure pigment chemicals also have their own reflection and absorption patterns, which can affect the final spectrum. Likewise, in pigment/binder mixtures, individual rays of light may not encounter pigment molecules, and may be reflected as is. These stray rays of source light contribute to the saturation of the color. Pure pigment allows very little white light to escape, producing a highly saturated colour. A small quantity of pigment mixed with a lot of white binder, however, will appear desaturated and pale, due to the high quantity of escaping white light.

Pigment groups

• Arsenic pigments: Paris Green
• Carbon pigments: Carbon Black, Ivory Black, Vine Black, Lamp Black
• Cadmium pigments: cadmium pigments, Cadmium Green, Cadmium Red, Cadmium Yellow, Cadmium Orange
• Iron oxide pigments: Caput Mortuum, oxide red, Red Ochre, Sanguine, Venetian Red
• Prussian blue
• Chromium pigments: Chrome Green, Chrome Yellow
• Cobalt pigments: Cobalt Blue, Cerulean Blue, Cobalt Violet, Aureolin
• Lead pigments: lead white, Naples yellow, Cremnitz White, red lead
• Copper pigments: Paris Green, Verdigris, Viridian, Egyptian Blue, Han Purple
• Titanium pigments: Titanium White, Titanium Beige, Titanium yellow, Titanium Black
• Ultramarine pigments: Ultramarine, Ultramarine Green Shade, French Ultramarine
• Mercury pigments: Vermilion
• Zinc pigments: Zinc White
• Clay earth pigments (which are also iron oxides): Raw Sienna, Burnt Sienna, Raw Umber, Burnt Umber, Yellow Ochre.
• Biological origins: Alizarin, Alizarin Crimson, Gamboge, Indigo, Indian Yellow, Cochineal Red, Tyrian Purple, Rose madder
• Other Organic: Pigment Red 170, Phthalo Green, Phthalo Blue, Quinacridone Magenta.

Biological pigments

The monarch butterfly's distinctive pigmentation reminds potential predators that it is poisonous.

In biology, a pigment is any colored material of plant or animal cells. Many biological structures, such as skin, eyes, fur and hair contain pigments (such as melanin) in specialized cells called chromatophores. Many conditions affect the levels or nature of pigments in plant, animal, some protista, or fungus cells. For instance, Albinism is a disorder affecting the level of melanin production in animals.

Pigment color differs from structural colour in that it is the same for all viewing angles, whereas structural colour is the result of selective reflection or iridescence, usually because of multilayer structures. For example, butterfly wings typically contain structural colour, although many butterflies have cells that contain pigment as well.

History

Naturally occurring pigments such as ochres and iron oxides have been used as colorants since prehistoric times. Archaeologists have uncovered evidence that early humans used paint for aesthetic purposes such as body decoration. Pigments and paint grinding equipment believed to be between 350,000 and 400,000 years old have been reported in a cave at Twin Rivers, near Lusaka, Zambia.

Before the Industrial Revolution, the range of colour available for art and decorative uses was technically limited. Most of the pigments in use were earth and mineral pigments, or pigments of biological origin. Pigments from unusual sources such as botanical materials, animal waste, insects, and mollusks were harvested and traded over long distances. Some colors were costly or impossible to mix with the range of pigments that were available. Blue and purple came to be associated with royalty because of their expense.

Biological pigments were often difficult to acquire, and the details of their production were kept secret by the manufacturers. Tyrian Purple is a pigment made from the mucus of one of several species of Murex snail. Production of Tyrian Purple for use as a fabric dye began as early as 1200 BCE by the Phoenicians, and was continued by the Greeks and Romans until 1453 CE, with the fall of Constantinople. The pigment was expensive and complex to produce, and items colored with it became associated with power and wealth. Greek historian Theopompus, writing in the 4th century BCE, reported that "purple for dyes fetched its weight in silver at Colophon [in Asia Minor]."

Mineral pigments were also traded over long distances. The only way to achieve a deep rich blue was by using a semi-precious stone, lapis lazuli, to produce a pigment known as ultramarine, and the best sources of lapis were remote. Flemish painter Jan Van Eyck, working in the 15th century, did not ordinarily include blue in his paintings. To have one's portrait commissioned and painted with ultramarine blue was considered a great luxury. If a patron wanted blue, they were forced to pay extra. When Van Eyck used lapis, he never blended it with other colors. Instead he applied it in pure form, almost as a decorative glaze. The prohibitive price of lapis lazuli forced artists to seek less expensive replacement pigments, both mineral ( azurite, smalt) and biological ( indigo).

Miracle of the Slave by Tintoretto (c. 1548). The son of a master dyer, Tintoretto used Carmine Red Lake pigment, derived from the cochineal insect, to achieve dramatic colour effects.

Spain's conquest of a New World empire in the 16th century introduced new pigments and colors to peoples on both sides of the Atlantic. Carmine, a dye and pigment derived from a parasitic insect found in Central and South America, attained great status and value in Europe. Produced from harvested, dried, and crushed cochineal insects, carmine could be used in fabric dye, body paint, or in its solid lake form, almost any kind of paint or cosmetic.

Natives of Peru had been producing cochineal dyes for textiles since at least 700 CE, but Europeans had never seen the colour before. When the Spanish invaded the Aztec empire in what is now Mexico, they were quick to exploit the colour for new trade opportunities. Carmine became the region's second most valuable export next to silver. Pigments produced from the cochineal insect gave the Catholic cardinals their vibrant robes and the English "Redcoats" their distinctive uniforms. The true source of the pigment, an insect, was kept secret until the 18th century, when biologists discovered the source.

Girl with a Pearl Earring by Johannes Vermeer (c. 1665).

While Carmine was popular in Europe, blue remained an exclusive colour, associated with wealth and status. The 17th century Dutch master Johannes Vermeer often made lavish use of lapis lazuli, along with Carmine and Indian Yellow, in his vibrant paintings.

Development of synthetic pigments

The earliest known pigments were natural minerals. Natural iron oxides give a range of colors and are found in many Paleolithic and Neolithic cave paintings. Two examples include Red Ochre, anhydrous Fe₂O₃, and the hydrated Yellow Ochre (Fe₂O₃^.H₂O). Charcoal, or carbon black, has also been used as a black pigment since prehistoric times.

Two of the first synthetic pigments were white lead (basic lead carbonate, (PbCO₃)₂Pb(OH)₂) and blue frit ( Egyptian Blue). White lead is made by combining lead with vinegar (acetic acid, CH₃COOH) in the presence of CO₂. Blue frit is calcium copper silicate and was made from glass colored with a copper ore, such as malachite. These pigments were used as early as the second millennium BCE.

The Industrial and Scientific Revolutions brought a huge expansion in the range of synthetic pigments, pigments that are manufactured or refined from naturally occurring materials, available both for manufacturing and artistic expression. Because of the expense of Lapis Lazuli, much effort went into finding a less costly blue pigment.

Prussian Blue was the first modern synthetic pigment, discovered by accident in 1704. By the early 19th century, synthetic and metallic blue pigments had been added to the range of blues, including French ultramarine, a synthetic form of lapis lazuli, and the various forms of Cobalt and Cerulean Blue. In the early 20th century, organic chemistry added Phthalo Blue, a synthetic, organic pigment with overwhelming tinting power.

Discoveries in colour science created new industries and drove changes in fashion and taste. The discovery in 1856 of mauveine, the first aniline dye, was a forerunner for the development of hundreds of synthetic dyes and pigments. Mauveine was discovered by an 18-year-old chemist named William Henry Perkin, who went on to exploit his discovery in industry and become wealthy. His success attracted a generation of followers, as young scientists went into organic chemistry to pursue riches. Within a few years, chemists had synthesized a substitute for madder in the production of Alizarin Crimson. By the closing decades of the 19th century, textiles, paints, and other commodities in colors such as red, crimson, blue, and purple had become affordable.

Self Portrait by Paul Cézanne. Working in the late 19th century, Cézanne had a palette of colors that earlier generations of artists could only dream of.

Development of chemical pigments and dyes helped bring new industrial prosperity to Germany and other countries in northern Europe, but it brought dissolution and decline elsewhere. In Spain's former New World empire, the production of cochineal colors employed thousands of low-paid workers. The Spanish monopoly on cochineal production had been worth a fortune until the early 1800s, when the Mexican War of Independence and other market changes disrupted production. Organic chemistry delivered the final blow for the cochineal colour industry. When chemists created inexpensive substitutes for carmine, an industry and a way of life went into steep decline.

Manufacturing and industrial standards

Pigments for sale at a market stall in Goa, India.

Before the development of synthetic pigments, and the refinement of techniques for extracting mineral pigments, batches of color were often inconsistent. With the development of a modern colour industry, manufacturers and professionals have cooperated to create international standards for identifying, producing, measuring, and testing colors.

First published in 1905, the Munsell Colour System became the foundation for a series of color models, providing objective methods for the measurement of color. The Munsell system describes a colour in three dimensions, hue, value (lightness), and chroma (colour purity), where chroma is the difference from gray at a given hue and value.

By the middle years of the 20th century, standardized methods for pigment chemistry were available, part of an international movement to create such standards in industry. The International Organization for Standardization (ISO) develops technical standards for the manufacture of pigments and dyes. ISO standards define various industrial and chemical properties, and how to test for them. The principal ISO standards that relate to all pigments are as follows:

• ISO-787 General methods of test for pigments and extenders
• ISO-8780 Methods of dispersion for assessment of dispersion characteristics

Other ISO standards pertain to particular classes or categories of pigments, based on their chemical composition, such as ultramarine pigments, titanium dioxide, iron oxide pigments, and so forth.

Many manufacturers of paints, inks, textiles, plastics, and colors have voluntarily adopted the Colour Index International (CII) as a standard for identifying the pigments that they use in manufacturing particular colors. First published in 1925, and now published jointly on the web by the Society of Dyers and Colourists (United Kingdom) and the American Association of Textile Chemists and Colorists (USA), this index is recognized internationally as the authoritative reference on colorants. It encompasses more than 27,000 products under more than 13,000 generic colour index names.

In the CII schema, each pigment has a generic index number that identifies it chemically, regardless of proprietary and historic names. For example, Phthalo Blue has been known by a variety of generic and proprietary names since its discovery in the 1930s. In much of Europe, phthalocyanine blue is better known as Helio Blue, or by a proprietary name such as Winsor Blue. An American paint manufacturer, Grumbacher, registered an alternate spelling (Thalo Blue) as a trademark. Colour Index International resolves all these conflicting historic, generic, and proprietary names so that manufacturers and consumers can identify the pigment (or dye) used in a particular colour product. In the CII, all Phthalo Blue pigments are designated by a generic colour index number as either PB15 or PB36, short for pigment blue 15 and pigment blue 16. (The two forms of Phthalo Blue, PB15 and PB16, reflect slight variations in molecular structure that produce a slightly more greenish or reddish blue.)

Scientific and technical issues

Selection of a pigment for a particular application is determined by cost, and by the physical properties and attributes of the pigment itself. For example, a pigment that is used to colour glass must have very high heat stability in order to survive the manufacturing process; but, suspended in the glass vehicle, its resistance to alkali or acidic materials is not an issue. In artistic paint, heat stability is less important, while lightfastness and toxicity are greater concerns.

The following are some of the attributes of pigments that determine their suitability for particular manufacturing processes and applications:

• Lightfastness
• Heat stability
• Toxicity
• Tinting strength
• Staining
• Dispersion
• Opacity or transparency
• Resistance to alkalis and acids
• Reactions and interactions between pigments

Swatches

Pure pigments reflect light in a very specific way that cannot be precisely duplicated by the discrete light emitters in a computer display. However, by making careful measurements of pigments, close approximations can be made. The Munsell Colour System provides a good conceptual explanation of what is missing. Munsell devised a system that provides an objective measure of colour in three dimensions: hue, value (or lightness), and chroma. Computer displays in general are unable to show the true chroma of many pigments, but the hue and lightness can be reproduced with relative accuracy. However, when the gamma of a computer display deviates from the reference value, the hue is also systematically biased.

The following approximations assume a display device at gamma 2.2, using the sRGB colour space. The further a display device deviates from these standards, the less accurate these swatches will be. Swatches are based on the average measurements of several lots of single-pigment watercolor paints, converted from Lab colour space to sRGB colour space for viewing on a computer display. Different brands and lots of the same pigment may vary in colour. Furthermore, pigments have inherently complex reflectance spectra that will render their colour appearance greatly different depending on the spectrum of the source illumination; a property called metamerism. Averaged measurements of pigment samples will only yield approximations of their true appearance under a specific source of illumination. Computer display systems use a technique called chromatic adaptation transforms to emulate the correlated colour temperature of illumination sources, and cannot perfectly reproduce the intricate spectral combinations originally seen. In many cases the perceived colour of a pigment falls outside of the gamut of computer displays and a method called gamut mapping is used to approximate the true appearance. Gamut mapping trades off any one of Lightness, Hue or Saturation accuracy to render the colour on screen, depending on the priority chosen in the conversion's ICC rendering intent.
