A map projection is any method used in cartography to represent the two-dimensional curved surface of the earth or other body on a plane.
Views |
---|
Graphical projections
|
Other views
|
The term " projection" here refers to any function defined on the earth's surface and with values on the plane, and not necessarily a geometric projection.
Flat maps could not exist without map projections, because a sphere cannot be laid flat over a plane without distortions. One can see this mathematically as a consequence of Gauss's Theorema Egregium. Flat maps can be more useful than globes in many situations: they are more compact and easier to store; they readily accommodate an enormous range of scales; they are viewed easily on computer displays; they can facilitate measuring properties of the terrain being mapped; they can show larger portions of the earth's surface at once; and they are cheaper to produce and transport. These useful traits of flat maps motivate the development of map projections.
Metric properties of maps
Many properties can be measured on the earth's surface independently of its geography. Some of these properties are:
Map projections can be constructed to preserve one or some of these properties, though not all of them simultaneously. Each projection preserves or compromises or approximates basic metric properties in different ways. The purpose of the map, then, determines which projection should form the base for the map. Since many purposes exist for maps, so do many projections exist upon which to construct them.
Another major concern that drives the choice of a projection is the compatibility of data sets. Data sets are geographic information. As such, their collection depends on the chosen model of the earth. Different models assign slightly different coordinates to the same location, so it is important that the model be known and that chosen projection be compatible with that model. On small areas (large scale) data compatibility issues are more important since metric distortions are minimal at this level. In very large areas (small scale), on the other hand, distortion is a more important factor to consider.
Construction of a map projection
The creation of a map projection involves three steps:
- Selection of a model for the shape of the earth or planetary body (usually choosing between a sphere or ellipsoid)
- Transformation of geographic coordinates ( longitude and latitude) to plane coordinates ( eastings and northings or x,y)
- Reduction of the scale (it does not matter in what order the second and third steps are performed)
Because the real earth's shape is irregular, information is lost in the first step, in which an approximating, regular model is chosen. Reducing the scale may be considered to be part of transforming geographic coordinates to plane coordinates.
Most map projections, both practically and theoretically, are not "projections" in any physical sense. Rather, they depend on mathematical formulae that have no direct physical interpretation. However, in understanding the concept of a map projection it is helpful to think of a globe with a light source placed at some definite point with respect to it, projecting features of the globe onto a surface. The following discussion of developable surfaces is based on that concept.
Choosing a projection surface
A surface that can be unfolded or unrolled into a flat plane or sheet without stretching, tearing or shrinking is called a ' developable surface'. The cylinder, cone and of course the plane are all developable surfaces. The sphere and ellipsoid are not developable surfaces. Any projection that attempts to project a sphere (or an ellipsoid) on a flat sheet will have to distort the image (similar to the impossibility of making a flat sheet from an orange peel).
One way of describing a projection is to project first from the earth's surface to a developable surface such as a cylinder or cone, followed by the simple second step of unrolling the surface into a plane. While the first step inevitably distorts some properties of the globe, the developable surface can then be unfolded without further distortion.
Orientation of the projection
Once a choice is made between projecting onto a cylinder, cone, or plane, the orientation of the shape must be chosen. The orientation is how the shape is placed with respect to the globe. The orientation of the projection surface can be normal (inline with the earth's axis), transverse (at right angles to the earth's axis) or oblique (any angle in between). These surfaces may also be either tangent or secant to the spherical or ellipsoidal globe. Tangent means the surface touches but does not slice through the globe; secant means the surface does slice through the globe. Insofar as preserving metric properties go, it is never advantageous to move the developable surface away from contact with the globe, so that practice is not discussed here.
Scale
A globe is the only way to represent the earth with constant scale throughout the entire map in all directions. A map cannot achieve that property for any area, no matter how small. It can, however, achieve constant scale along specific lines.
Some possible properties are:
- The scale depends on location, but not on direction. This is equivalent to preservation of angles, the defining characteristic of a conformal map.
- Scale is constant along any parallel in the direction of the parallel. This applies for any cylindrical or pseudocylindrical projection in normal aspect.
- Combination of the above: the scale depends on latitude only, not on longitude or direction. This applies for the Mercator projection in normal aspect.
- Scale is constant along all straight lines radiating from two particular geographic locations. This is the defining characteristic an equidistant projection, such as the Azimuthal equidistant projection or the Equirectangular projection.
Choosing a model for the shape of the Earth
Projection construction is also affected by how the shape of the earth is approximated. In the following discussion on projection categories, a sphere is assumed. However, the Earth is not exactly spherical but is closer in shape to an oblate ellipsoid, a shape which bulges around the equator. Selecting a model for a shape of the earth involves choosing between the advantages and disadvantages of a sphere versus an ellipsoid. Spherical models are useful for small-scale maps such as world atlases and globes, since the error at that scale is not usually noticeable or important enough to justify using the more complicated ellipsoid. The ellipsoidal model is commonly used to construct topographic maps and for other large and medium scale maps that need to accurately depict the land surface.
A third model of the shape of the earth is called a geoid, which is a complex and more or less accurate representation of the global mean sea level surface that is obtained through a combination of terrestrial and satellite gravity measurements. This model is not used for mapping due to its complexity but is instead used for control purposes in the construction of geographic datums. (In geodesy, plural of "datum" is "datums," rather than "data".) A geoid is used to construct a datum by adding irregularities to the ellipsoid in order to better match the Earth's actual shape (it takes into account the large scale features in the Earth's gravity field associated with mantle convection patterns, as well as the gravity signatures of very large geomorphic features such as mountain ranges, plateaus and plains). Historically, datums have been based on ellipsoids that best represent the geoid within the region the datum is intended to map. Each ellipsoid has a distinct major and minor axis. Different controls (modifications) are added to the ellipsoid in order to construct the datum, which is specialized for a specific geographic regions (such as the North American Datum). A few modern datums, such as WGS84 (the one used in the Global Positioning System GPS), are optimized to represent the entire earth as well as possible with a single ellipsoid, at the expense of some accuracy in smaller regions.
Classification
A fundamental projection classification is based on type of projection surface onto which the globe is conceptually projected. The projections are described in terms of placing a gigantic surface in contact with the earth, followed by an implied scaling operation. These surfaces are cylindrical (e.g., Mercator), conic (e.g., Albers), and azimuthal or plane (e.g., stereographic). Many mathematical projections, however, do not neatly fit into any of these three conceptual projection methods. Hence other peer categories have been described in the literature, such as pseudoconic (meridians are arcs of circles), pseudocylindrical (meridians are straight lines), pseudoazimuthal, retroazimuthal, and polyconic.
Another way to classify projections is through the properties they preserve despite projection. Some of the more common categories are:
- Preserving direction (azimuthal), a trait possible only from one or two points to every other point
- Preserving shape locally ( conformal or orthomorphic)
- Preserving area (equal-area or equiareal or equivalent or authalic)
- Preserving distance (equidistant), a trait possible only between one or two points and every other point
- Preserving shortest route, a trait preserved only by the gnomonic projection
NOTE: Because the sphere is not a developable surface, it is impossible to construct a map projection that is both equal-area and conformal.
Projections by surface
Cylindrical
The term "cylindrical projection" is used to refer to any projection in which meridians are mapped to equally spaced vertical lines and circles of latitude (parallels) are mapped to horizontal lines (or, mutatis mutandis, more generally, radial lines from a fixed point are mapped to equally spaced parallel lines and concentric circles around it are mapped to perpendicular lines).

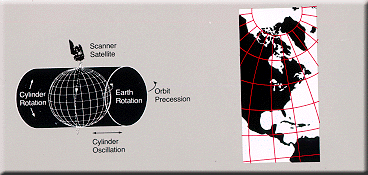

The mapping of meridians to vertical lines can be visualized by imagining a cylinder (of which the axis coincides with the Earth's axis of rotation) wrapped around the Earth and then projecting onto the cylinder, and subsequently unfolding the cylinder.
Unavoidably, all cylindrical projections have the same east-west stretching away from the equator by a factor equal to the secant of the latitude, compared with the scale at the equator. The various cylindrical projections can be described in terms of the north-south stretching:
- North-south stretching is equal to the east-west stretching (secant(L)): The east-west scale matches the north-south-scale: conformal cylindrical or Mercator; this distorts areas excessively in high latitudes (see also transverse Mercator).
- North-south stretching growing rapidly with latitude, even faster than east-west stretching (secant(L))²: The cylindric perspective (= central cylindrical) projection; unsuitable because distortion is even worse than in the Mercator projection.

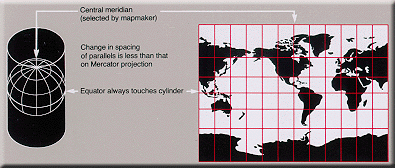

- North-south stretching grows with latitude, but less quickly than the east-west stretching: such as the Miller cylindrical projection (secant(L*4/5)).
- North-south distances neither stretched nor compressed (1): equidistant cylindrical or plate carrée.
- North-south compression precisely the reciprocal of east-west stretching (cos(L)): equal-area cylindrical (with many named specializations such as Gall-Peters or Gall orthographic, Behrmann, and Lambert cylindrical equal-area). This divides north-south distances by a factor equal to the secant of the latitude, preserving area but heavily distorting shapes.
In the first case (Mercator), the east-west scale always equals the north-south scale. In the second case (central cylindrical), the north-south scale exceeds the east-west scale everywhere away from the equator. Each remaining case has a pair of identical latitudes of opposite sign (or else the equator) at which the east-west scale matches the north-south-scale.
Cylindrical projections map the whole Earth as a finite rectangle, except in the first two cases, where the rectangle stretches infinitely tall while retaining constant width.
Pseudocylindrical
Pseudocylindrical projections represent the central meridian and each parallel as a single straight line segment, but not the other meridians. Each pseudocylindrical projection represents a point on the Earth along the straight line representing its parallel, at a distance which is a function of its difference in longitude from the central meridian.

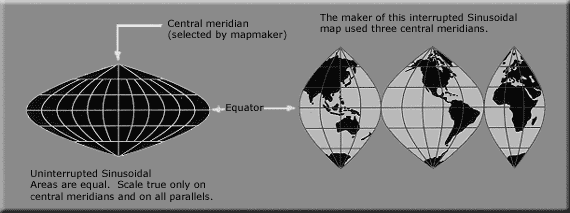

- Sinusoidal: the north-south scale and the east-west scale are the same throughout the map, creating an equal-area map. On the map, as in reality, the length of each parallel is proportional to the cosine of the latitude. Thus the shape of the map for the whole earth is the area between two symmetric rotated cosine curves.
The true distance between two points on the same meridian corresponds to the distance on the map between the two parallels, which is smaller than the distance between the two points on the map. The true distance between two points on the same parallel -- and the true area of shapes on the map -- are not distorted. The meridians drawn on the map help the user to realize the shape distortion and mentally compensate for it.
- Collignon projection, which in its most common forms represents each meridian as 2 straight line segments, one from each pole to the equator.

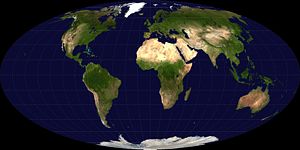

- Mollweide
- Goode homolosine
- Eckert IV
- Eckert VI
- Kavrayskiy VII
- Tobler hyperelliptical
Hybrid
The HEALPix projection combines an equal-area cylindrical projection in equatorial regions with the Collignon projection in polar areas.
Conical
- Equidistant conic
- Lambert conformal conic

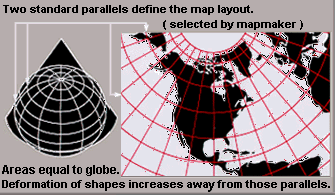

- Albers conic
Pseudoconical
- Bonne
- Werner cordiform designates a pole and a meridian; distances from the pole are preserved, as are distances from the meridian (which is straight) along the parallels
- Continuous American polyconic
Azimuthal (projections onto a plane)

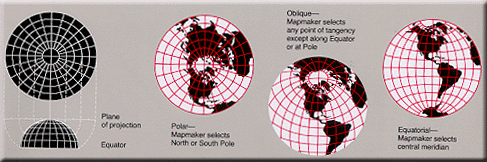

Azimuthal projections have the property that directions from a central point are preserved (and hence, great circles through the central point are represented by straight lines on the map). Usually these projections also have radial symmetry in the scales and hence in the distortions: map distances from the central point are computed by a function r(d) of the true distance d, independent of the angle; correspondingly, circles with the central point as center are mapped into circles which have as centre the central point on the map.
The mapping of radial lines can be visualized by imagining a plane tangent to the Earth, with the central point as tangent point.
The radial scale is r'(d) and the transverse scale r(d)/(R sin(d/R)) where R is the radius of the Earth.
Some azimuthal projections are true perspective projections; that is, they can be constructed mechanically, projecting the surface of the Earth by extending lines from a points of perspective (along an infinite line through the tangent point and the tangent point's antipode) onto the plane:

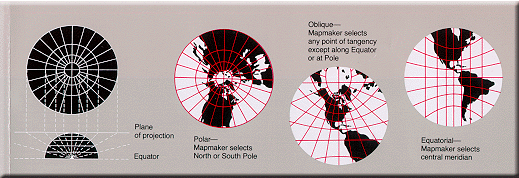

- The gnomonic projection displays great circles as straight lines. Can be constructed by using a point of perspective at the centre of the Earth. r(d) = c tan(d/R); a hemisphere already requires an infinite map,
- The General Perspective Projection can be constructed by using a point of perspective outside the earth. Photographs of Earth (such as those from the International Space Station) give this perspective.
- The orthographic projection maps each point on the earth to the closest point on the plane. Can be constructed from a point of perspective an infinite distance from the tangent point; r(d) = c sin(d/R). Can display up to a hemisphere on a finite circle. Photographs of Earth from far enough away, such as the Moon, give this perspective.

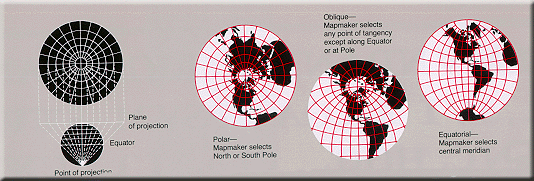

- The azimuthal conformal projection, also known as the stereographic projection, can be constructed by using the tangent point's antipode as the point of perspective. r(d) = c tan(d/2R); the scale is c/(2R cos²(d/2R)). Can display nearly the entire sphere on a finite circle. The full sphere requires an infinite map.
Other azimuthal projections are not true perspective projections:
- Azimuthal equidistant: r(d) = cd; it is used by amateur radio operators to know the direction to point their antennas toward a point and see the distance to it. Distance from the tangent point on the map is proportional to surface distance on the earth (; for the case where the tangent point is the North Pole, see the flag of the United Nations)
- Lambert azimuthal equal-area. Distance from the tangent point on the map is proportional to straight-line distance through the earth: r(d) = c sin(d/2R)
- Logarithmic azimuthal is constructed so that each point's distance from the centre of the map is the logarithm of its distance from the tangent point on the Earth. Works well with cognitive maps. r(d) = c ln(d/d0); locations closer than at a distance equal to the constant d0 are not shown (, figure 6-5)
Projections by preservation of a metric property
Conformal
Conformal map projections preserve angles locally:

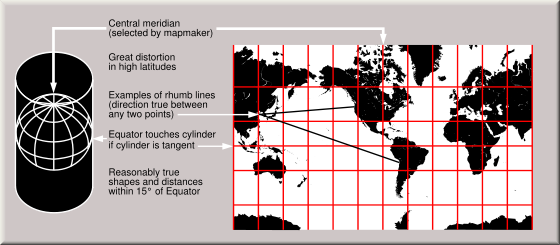

- Mercator - rhumb lines are represented by straight segments
- Stereographic - shape of circles is conserved
- Roussilhe
- Lambert conformal conic
- Quincuncial map
- Adams hemisphere-in-a-square projection
- Guyou hemisphere-in-a-square projection
Equal-area
These projections preserve area:
- Gall orthographic (also known as Gall-Peters, or Peters, projection)
- Albers conic
- Lambert azimuthal equal-area
- Mollweide
- Hammer
- Briesemeister
- Sinusoidal
- Werner
- Bonne
- Bottomley
- Goode's homolosine
- Hobo-Dyer
- Collignon
- Tobler hyperelliptical
Equidistant
These preserve distance from some standard point or line:
- Plate carrée - north-south scale is constant
- Equirectangular - equal distance between all latitudes and longitudes.
- Azimuthal equidistant - radial scale with respect to the central point is constant
- Equidistant conic
- sinusoidal - east-west scale is constant and corresponds to distances between parallels (but the north-south scale away from the central meridian is larger due to the obliqueness of the meridians)
- Werner cordiform distances from the North Pole are correct as are the curved distance on parallels
- Soldner
- Two-point equidistant: two "control points" are arbitrarily chosen by the map maker. Distance from any point on the map to each control point is proportional to surface distance on the earth.
Gnomonic
Great circles are displayed as straight lines:
- Gnomonic projection
Retroazimuthal
Direction to a fixed location B (the bearing at the starting location A of the shortest route) corresponds to the direction on the map from A to B:
- Littrow - the only conformal retroazimuthal projection
- Hammer retroazimuthal - also preserves distance from the central point
- Craig retroazimuthal aka Mecca or Qibla - also has vertical meridians
Compromise projections
Compromise projections give up the idea of perfectly preserving metric properties, seeking instead to strike a balance between distortions, or to simply make things "look right". Most of these types of projections distort shape in the polar regions more than at the equator:

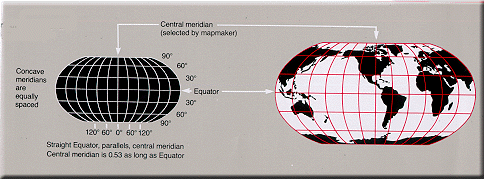

- Robinson
- van der Grinten
- Miller cylindrical
- Winkel Tripel
- Buckminster Fuller's Dymaxion
- B.J.S. Cahill's Butterfly Map
- Steve Waterman's Butterfly Map
- Kavrayskiy VII
- Wagner VI
Other noteworthy projections
- Chamberlin trimetric
- The French cartographer Oronce Fine developed a heart-shaped projection in the sixteenth century
